From Mencom: ILME is a globally recognized leader in the heavy duty industrial connector industry. The CSE series of spring terminal inserts are rated for 16 amps with a choice of pin counts that include 6, 10, 16, and 24. The ILME rectangular connector product offering includes high quality connector inserts (male and female) made of self extinguishing thermoplastic materials which offer a UL working temperature from -40 C to +125 C. When combined with the mating hoods and bases, these inserts create reliable, easy to use, quick disconnect solutions for a wide range of industrial automation applications.
From Mencom: ILME is a globally recognized leader in the heavy duty industrial connector industry. The CVI aluminum die cast Bases use a patented V-type stainless steel locking system that provides consistent clamping force and IP65 protection even after 500 mating cycles. These bulkhead mounted bases will mate with any hood of the corresponding size.
Inserts
-

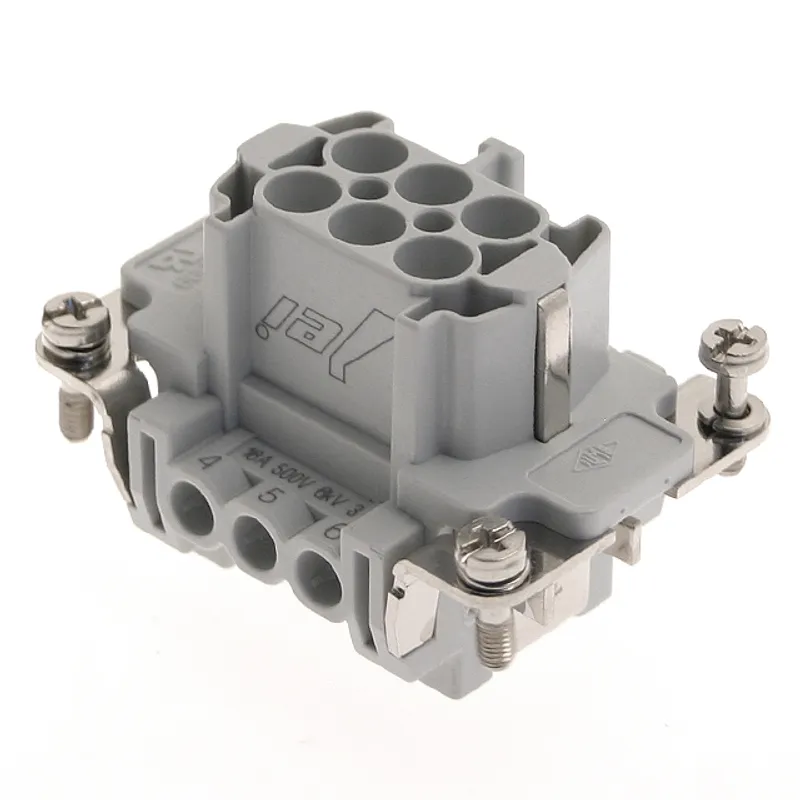

JNEF-06Request a quoteJEI, JNE series, Female Rectangular Insert, size 44.27, 6 pin, 16 amp, Screw
-

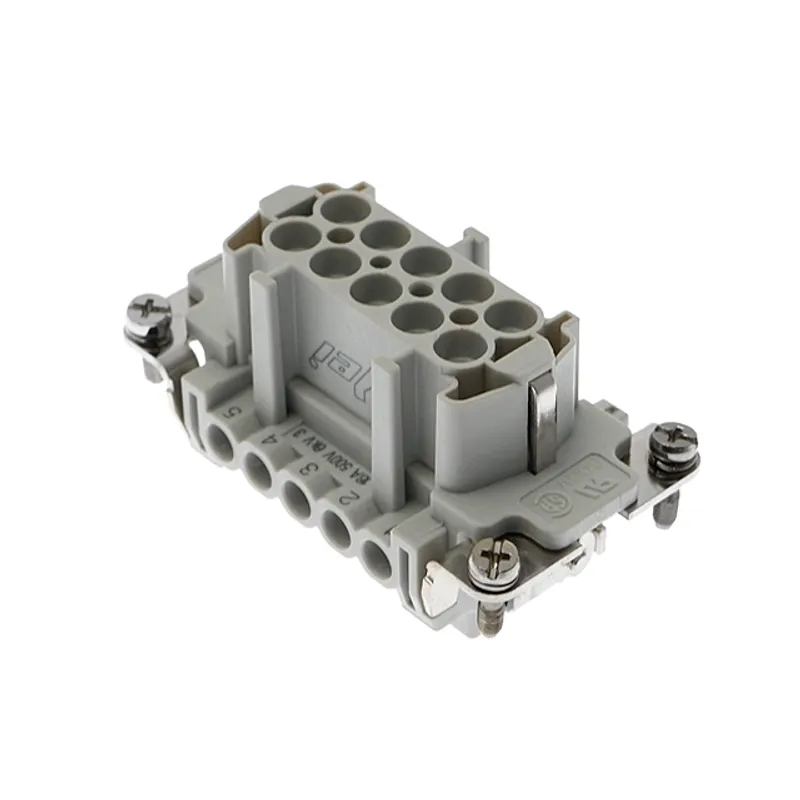

JNEF-10Request a quoteJEI, JNE series, Female Rectangular Insert, size 57.27, 10 pin, 16 amp, Screw
-

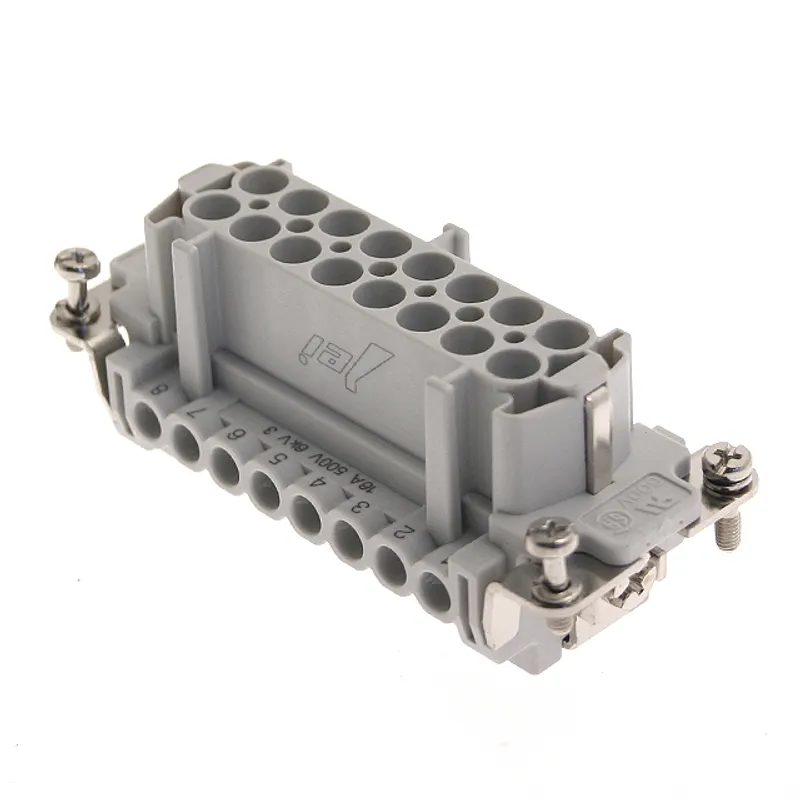

JNEF-16Request a quoteJEI, JNE series, Female Rectangular Insert, size 77.27, 16 pin, 16 amp, Screw
-

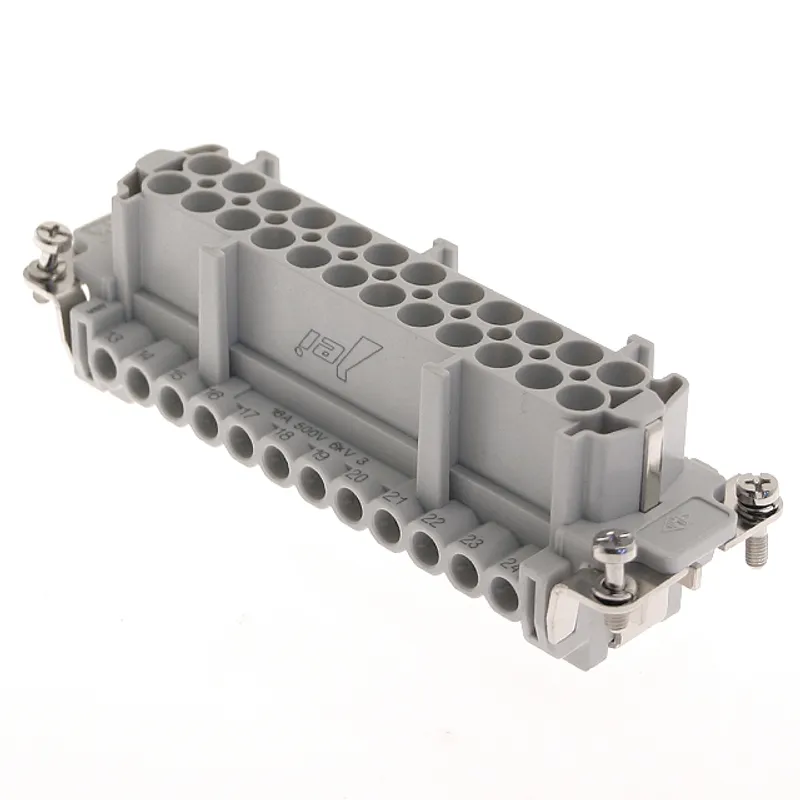

JNEF-24Request a quoteJEI, JNE series, Female Rectangular Insert, size 104.27, 24 pin, 16 amp, Screw
-

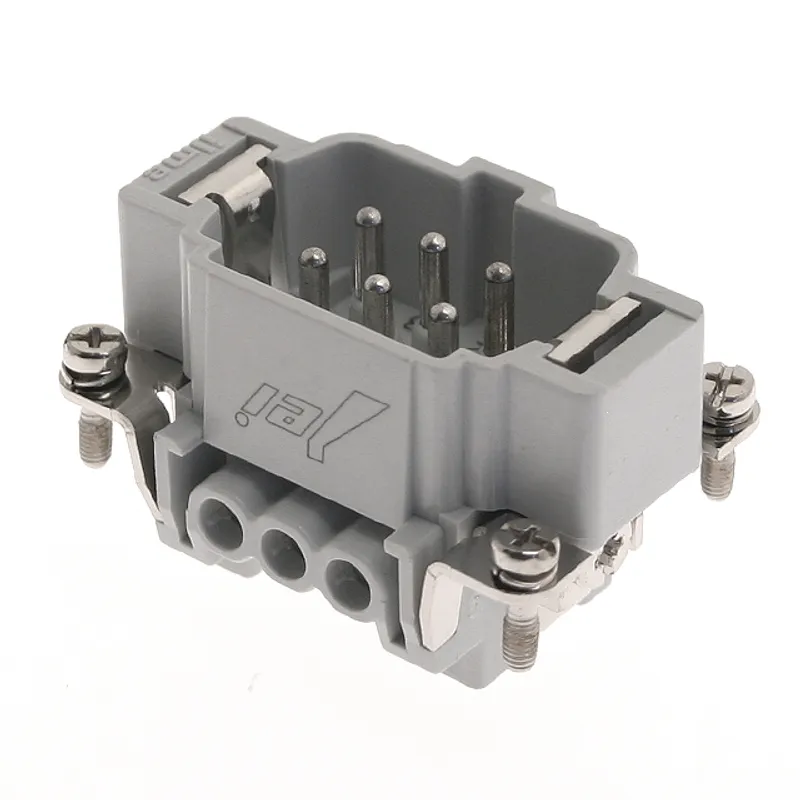

JNEM-06Request a quoteJEI, JNE series, Male Rectangular Insert, size 44.27, 6 pin, 16 amp, Screw
-

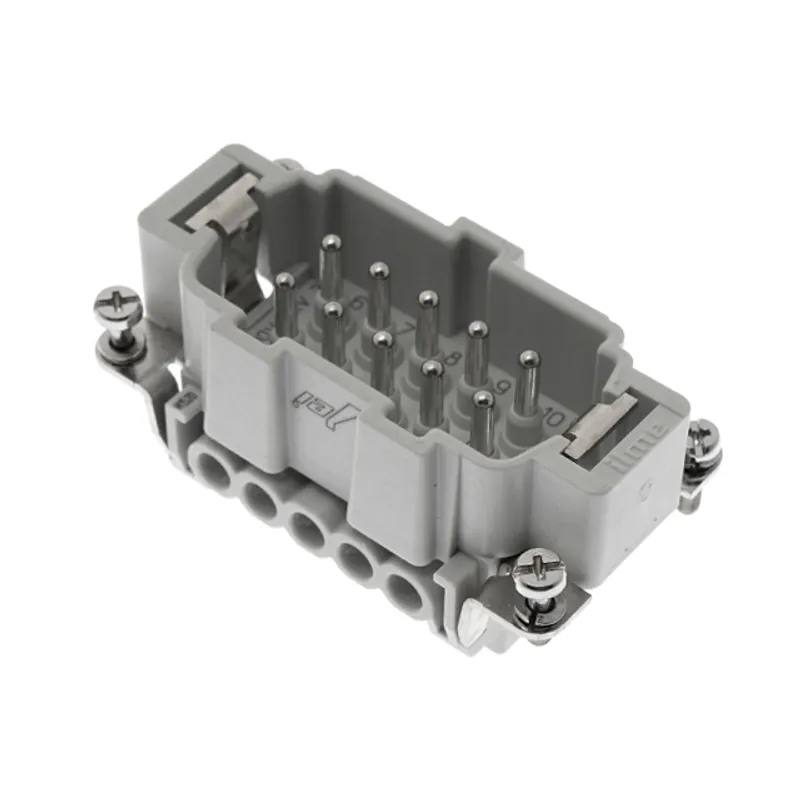

JNEM-10Request a quoteJEI, JNE series, Male Rectangular Insert, size 57.27, 10 pin, 16 amp, Screw
-

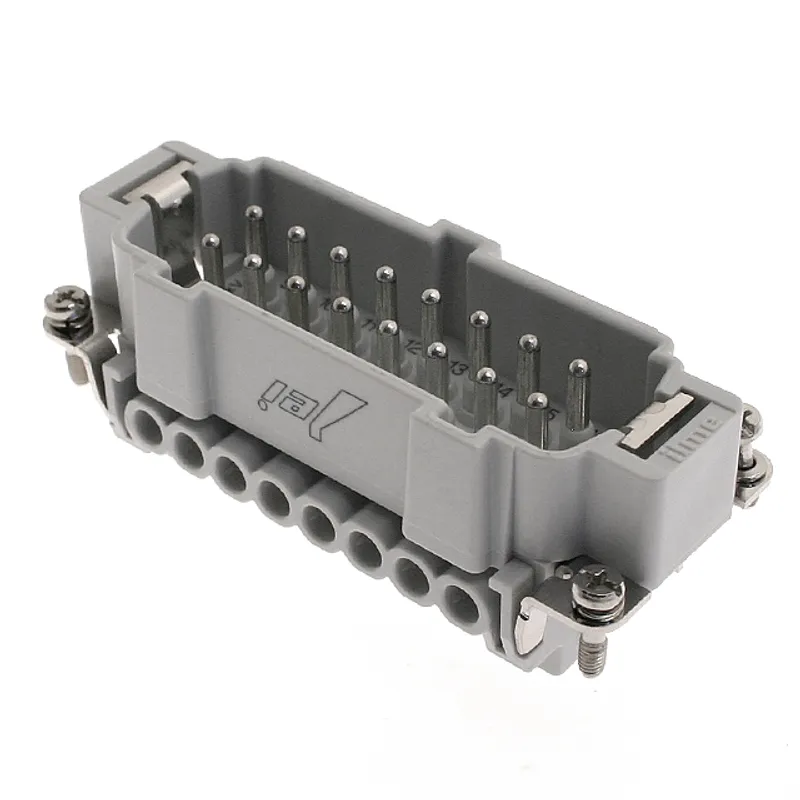

JNEM-16Request a quoteJEI, JNE series, Male Rectangular Insert, size 77.27, 16 pin, 16 amp, Screw
-

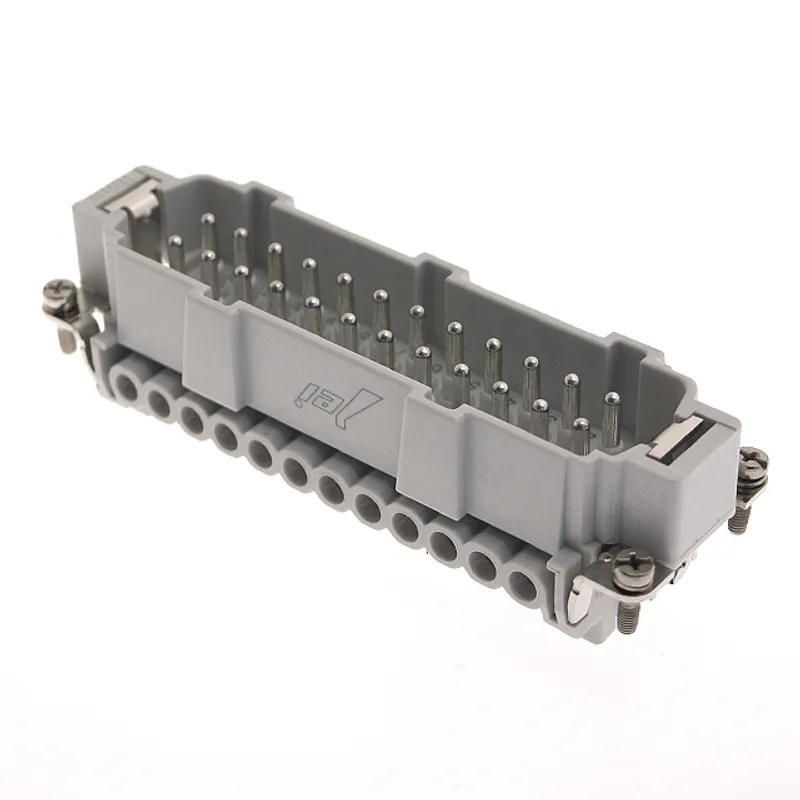

JNEM-24Request a quoteJEI, JNE series, Male Rectangular Insert, size 104.27, 6 pin, 24 amp, Screw
-
JSHF-06Request a quoteJEI, JNE series, Female Rectangular Insert, size 44.27, 6 pin, 16 amp, Squich Spring
-

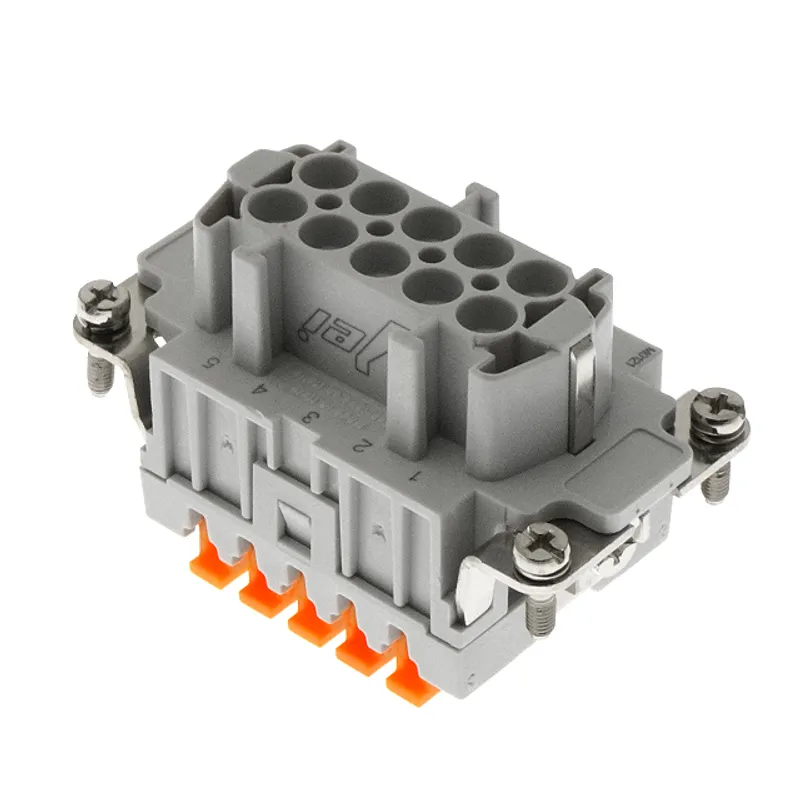

JSHF-10Request a quoteJEI, JNE series, Female Rectangular Insert, size 57.27, 10 pin, 16 amp, Squich Spring
-

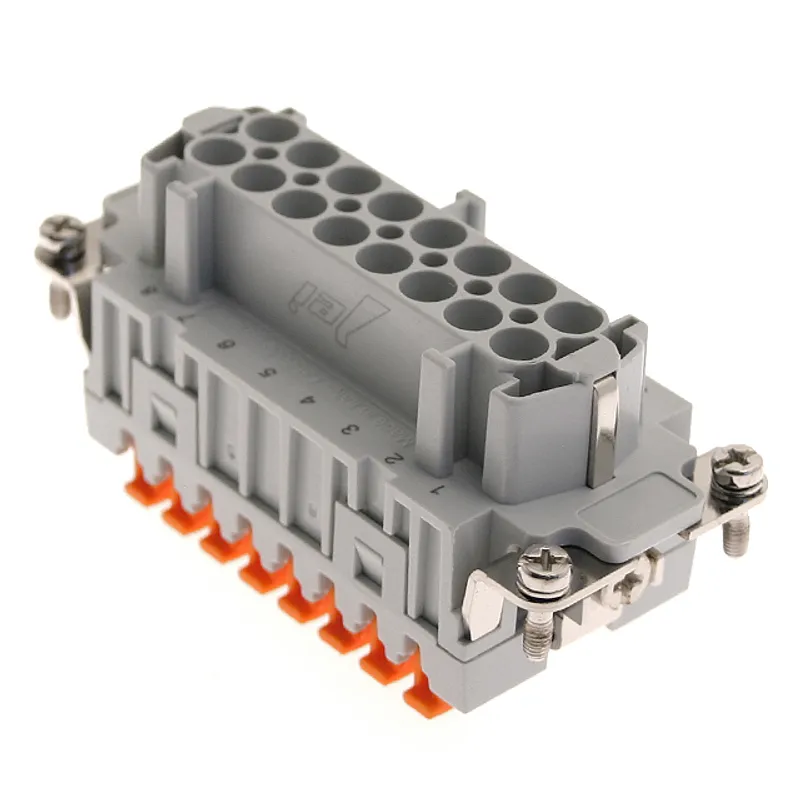

JSHF-16Request a quoteJEI, JNE series, Female Rectangular Insert, size 77.27, 16 pin, 16 amp, Squich Spring
-

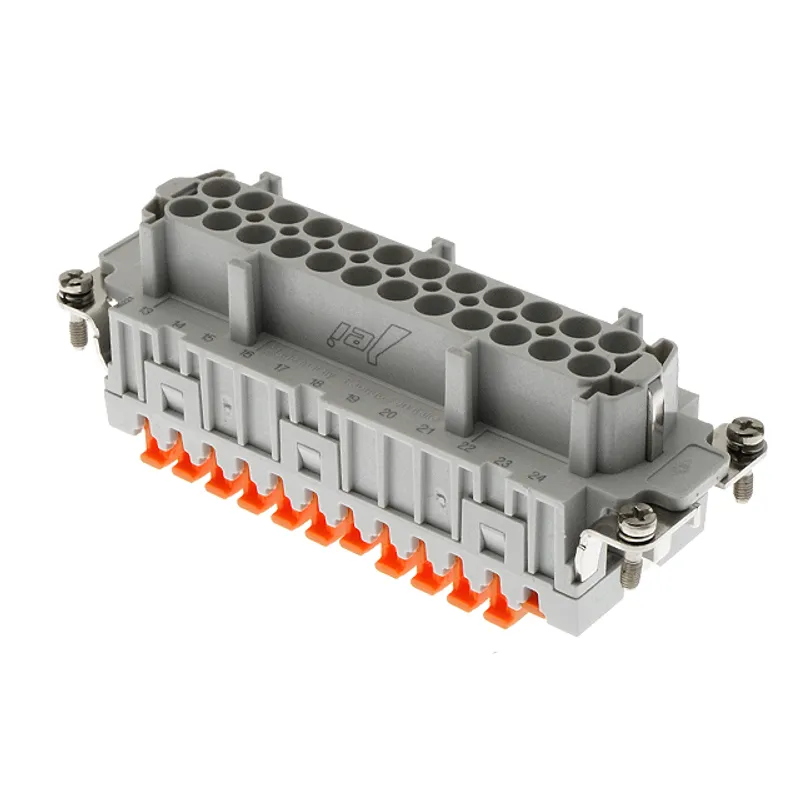

JSHF-24Request a quoteJEI, JNE series, Female Rectangular Insert, size 104.27, 24 pin, 16 amp, Squich Spring
-
JSHM-06Request a quoteJEI, JNE series, Male Rectangular Insert, size 44.27, 6 pin, 16 amp, Squich Spring
-

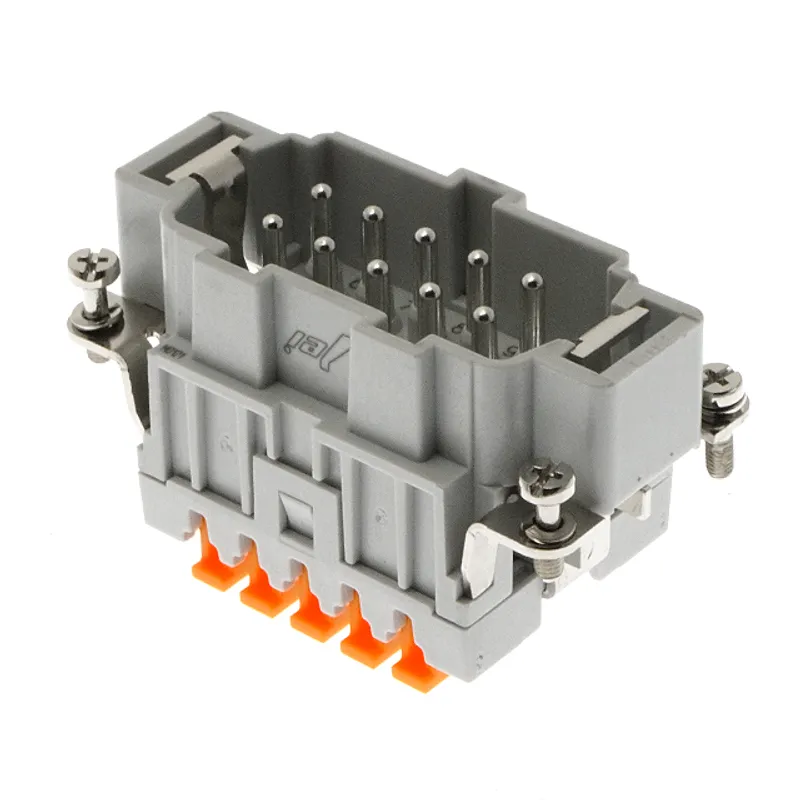

JSHM-10Request a quoteJEI, JNE series, Male Rectangular Insert, size 57.27, 10 pin, 16 amp, Squich Spring
-

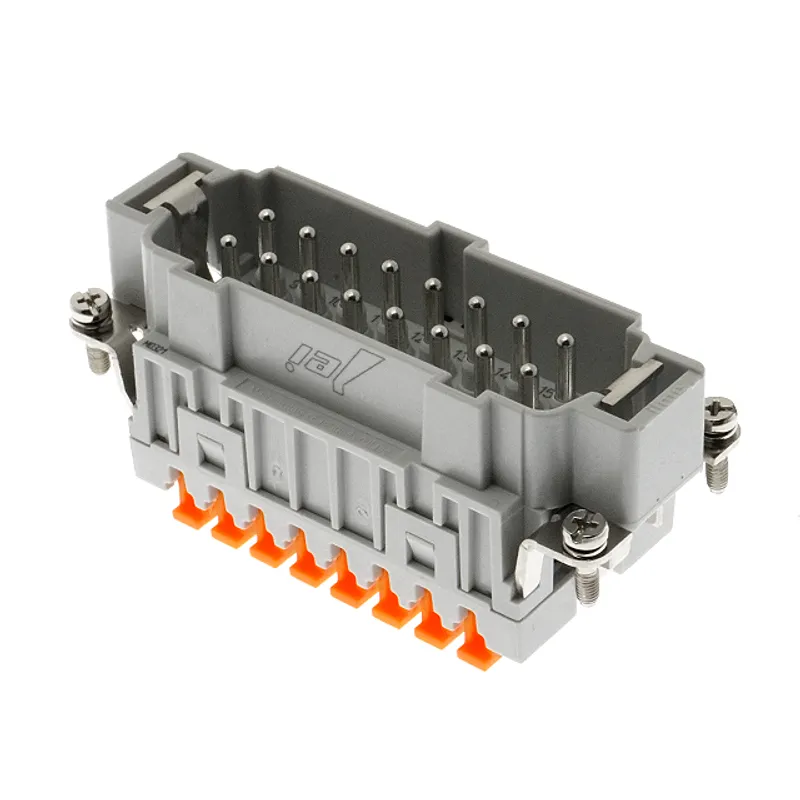

JSHM-16Request a quoteJEI, JNE series, Male Rectangular Insert, size 77.27, 16 pin, 16 amp, Squich Spring
-

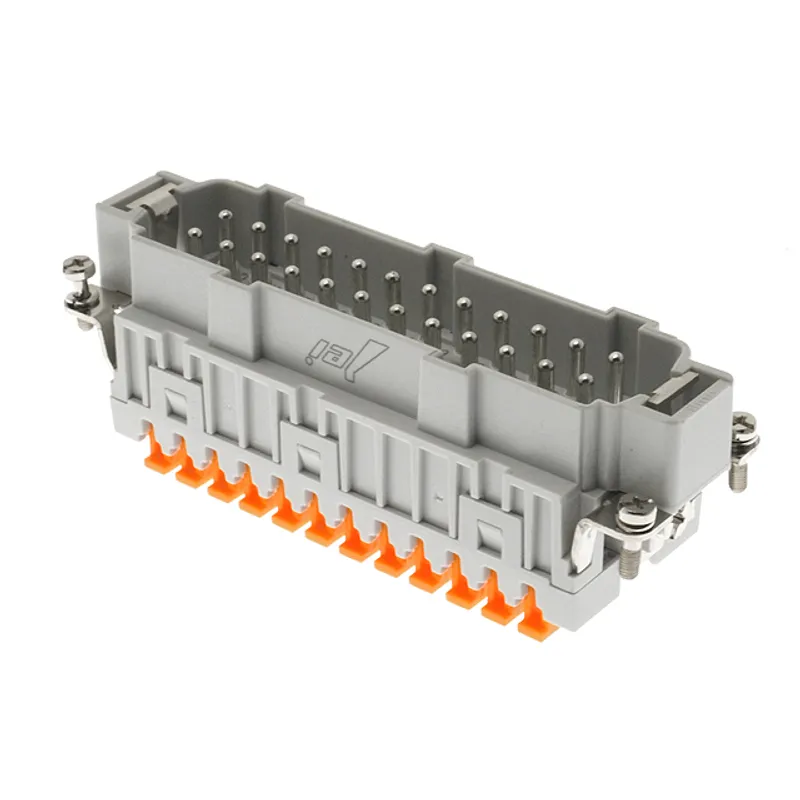

JSHM-24Request a quoteJEI, JNE series, Male Rectangular Insert, size 104.27, 6 pin, 24 amp, Squich Spring
Bases
-

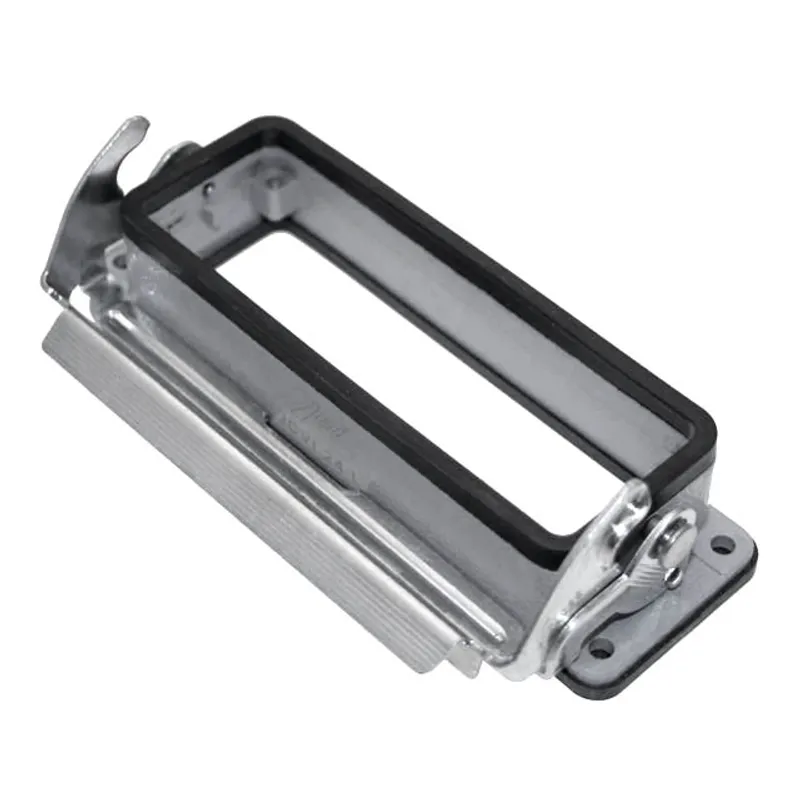

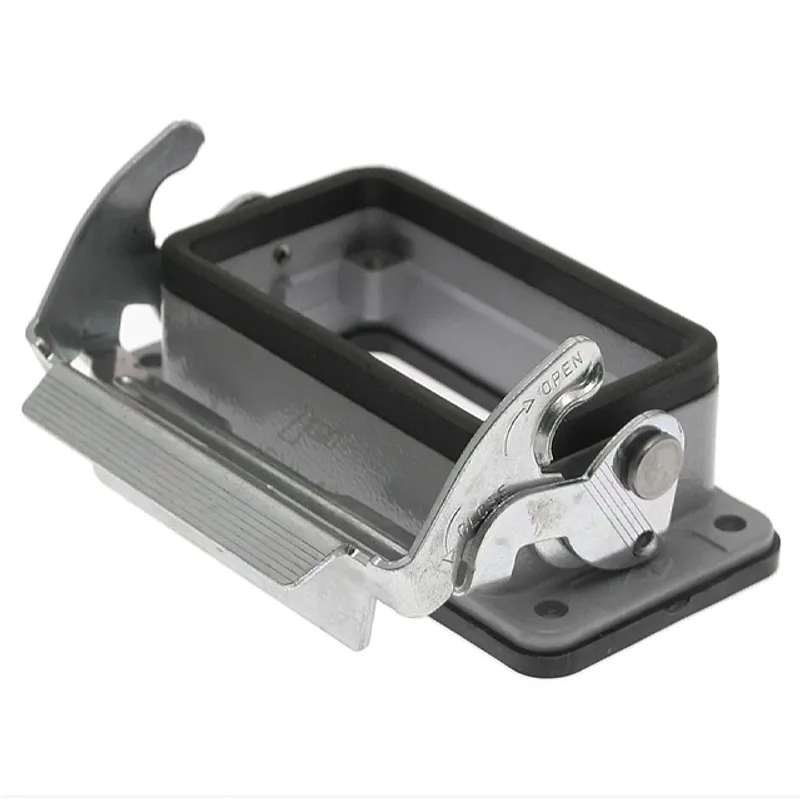

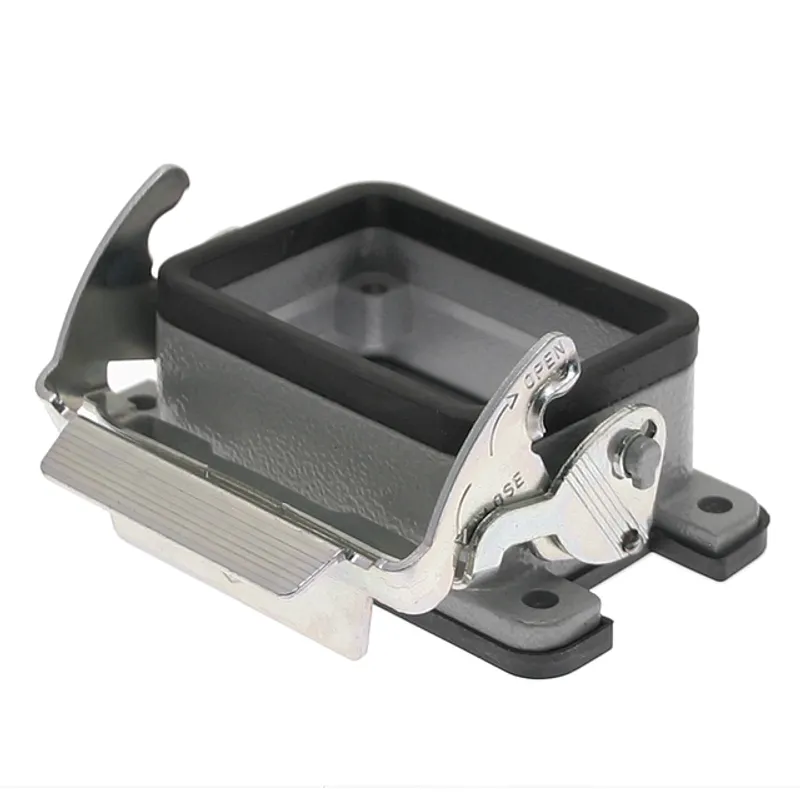

JCVI-06LRequest a quoteJEI Series, Rectangular Base, Bulkhead mount, size 44.27, V-Type, Single Latch
-

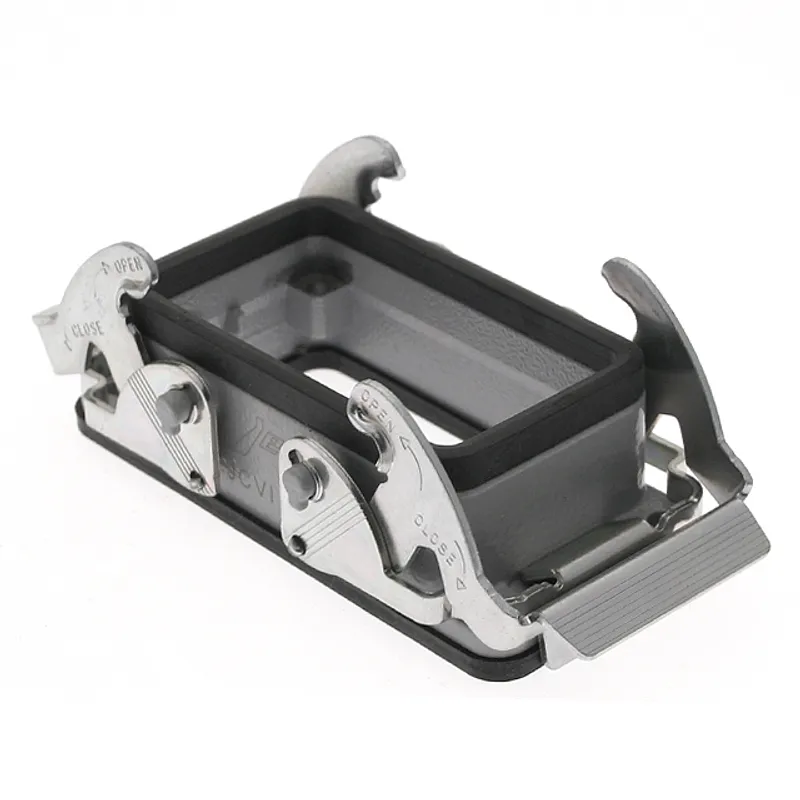

JCVI-10Request a quoteJEI Series, Rectangular Base, Bulkhead mount, size 57.27, V-Type, Double Latch
-
JCVI-10LRequest a quoteJEI Series, Rectangular Base, Bulkhead mount, size 57.27, V-Type, Single Latch
-

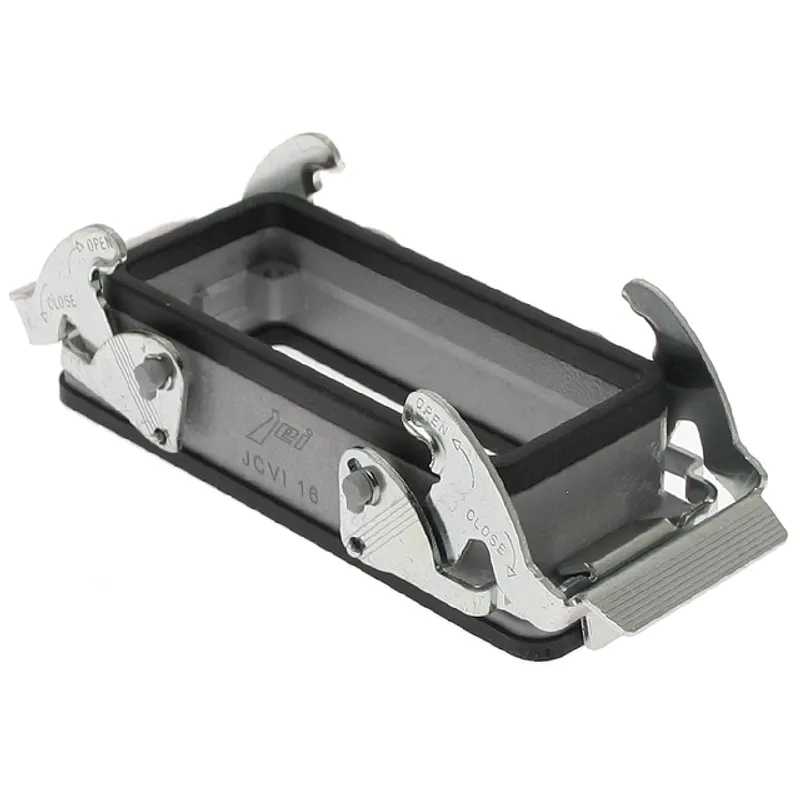

JCVI-16Request a quoteJEI Series, Rectangular Base, Bulkhead mount, size 77.27, V-Type, Double Latch
-
JCVI-16LRequest a quoteJEI Series, Rectangular Base, Bulkhead mount, size 77.27, V-Type, Single Latch
-

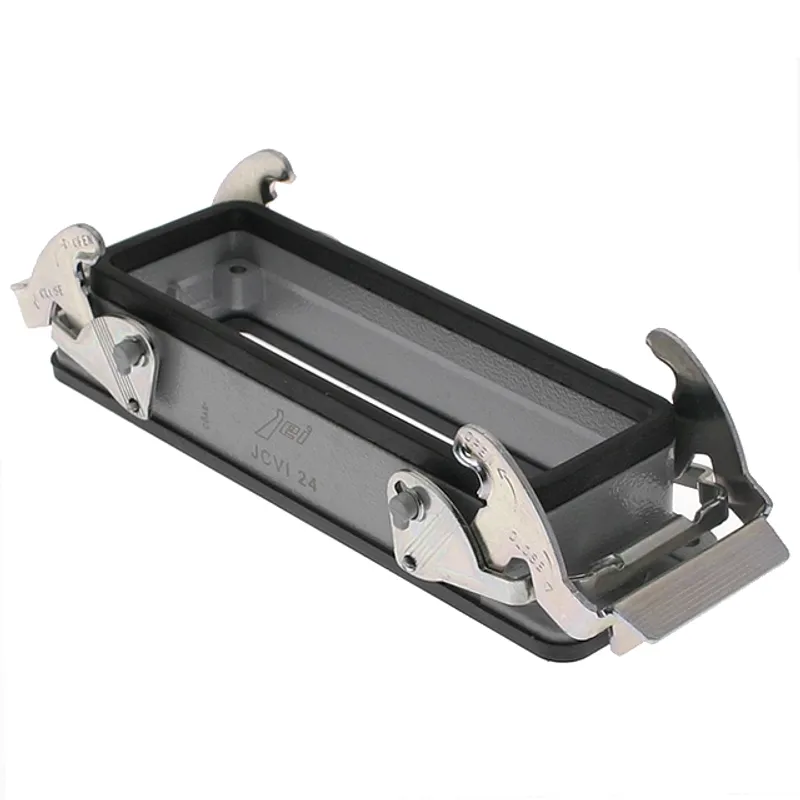

JCVI-24Request a quoteJEI Series, Rectangular Base, Bulkhead mount, size 104.27, V-Type, Double Latch
-
JCVI-24LRequest a quoteJEI Series, Rectangular Base, Bulkhead mount, size 104.27, V-Type, Single Latch
Part descriptions are Mencom’s own catalog descriptions. Drawings, CAD files and brochures are Mencom documents, hosted by Gross Automation.
