Mencom Hi-Density
21 Mencom part numbers. Copy the one you need, open its drawing, or request a quote.
One order, one finished panel: Gross Manufacturing builds custom UL 508A control panels around the parts we sell.
From Mencom: ILME is a globally recognized leader in the heavy duty industrial connector industry. The CSH (Squish) push button spring clamp inserts are rated for 16 amps with a choice of pin counts that include 6, 10, 16, 24, 32, and 48 poles. This patented push button spring clamp termination provides the best vibration resistance and gas tight connections. The innovative design of this insert reduces installation time over the standard screw inserts by 70% and standard spring clamp by 20%. This is a great way to reduce costs without compromising quality or reliability.
-

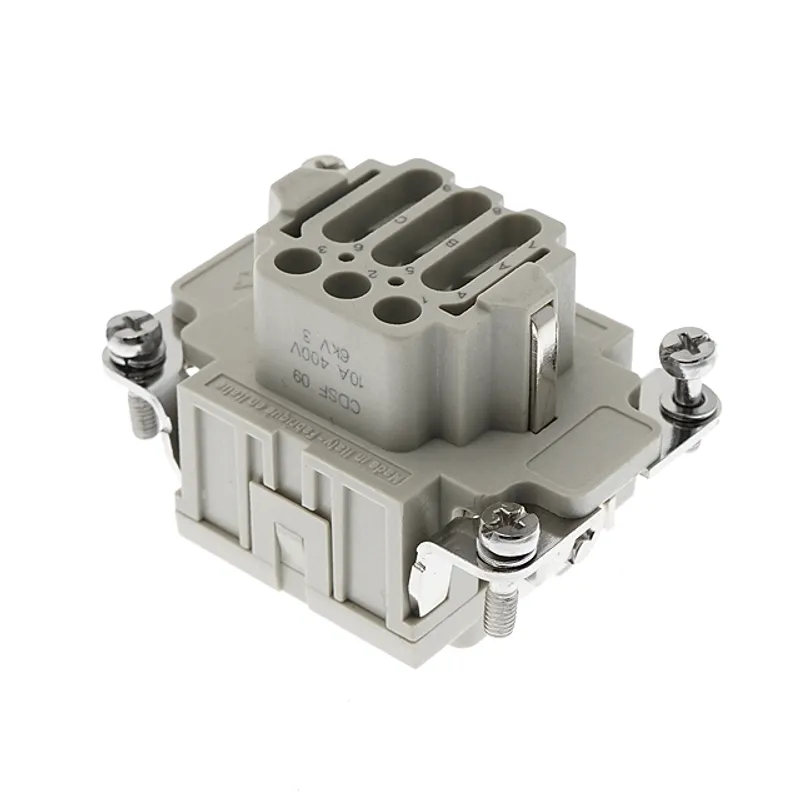

CDSF-09Request a quoteHi-Density, CDS series, Female Rectangular Insert, size 44.27, 9 pin, 10 amp, Standard Spring
-

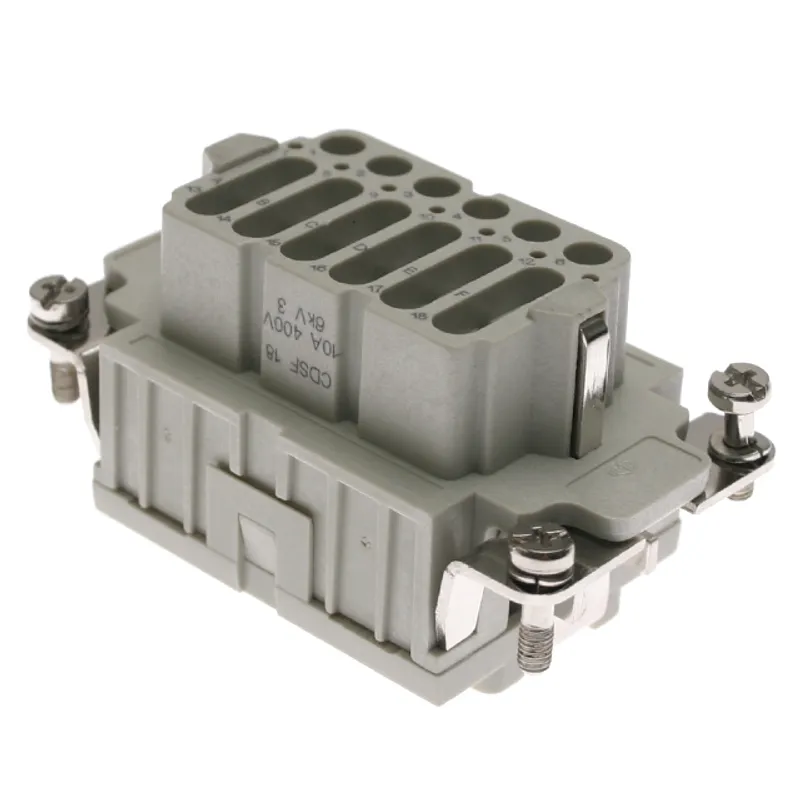

CDSF-18Request a quoteHi-Density, CDS series, Female Rectangular Insert, size 57.27, 18 pin, 10 amp, Standard Spring
-

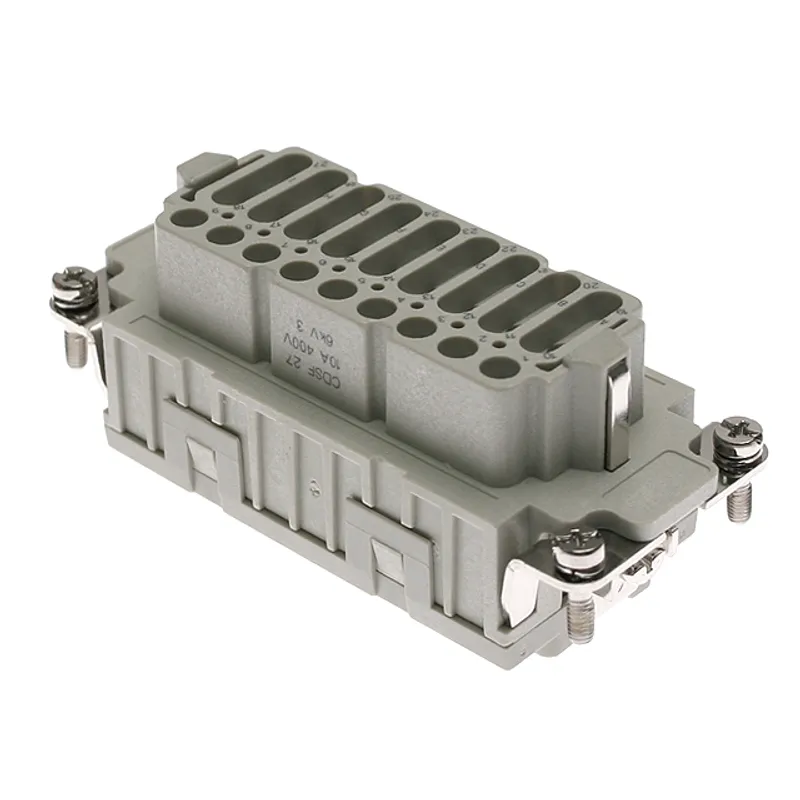

CDSF-27Request a quoteHi-Density, CDS series, Female Rectangular Insert, size 77.27, 27 pin, 10 amp, Standard Spring
-

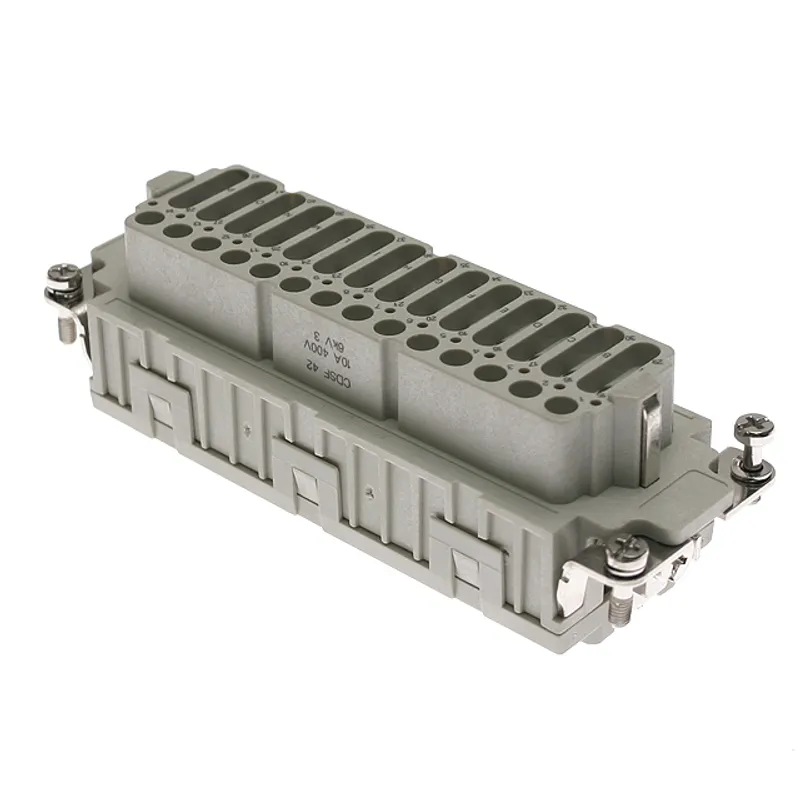

CDSF-42Request a quoteHi-Density, CDS series, Female Rectangular Insert, size 104.27, 42 pin, 10 amp, Standard Spring
-

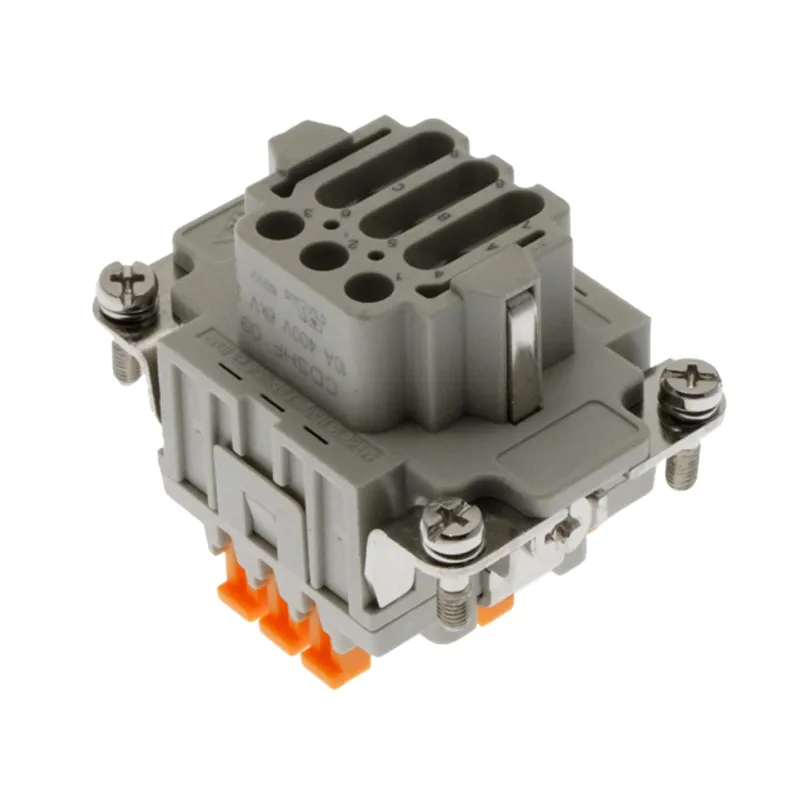

CDSHF-09Request a quoteHi-Density, CDSH series, Female Rectangular Insert, size 44.27, 9 pin, 10 amp, Squich Spring
-

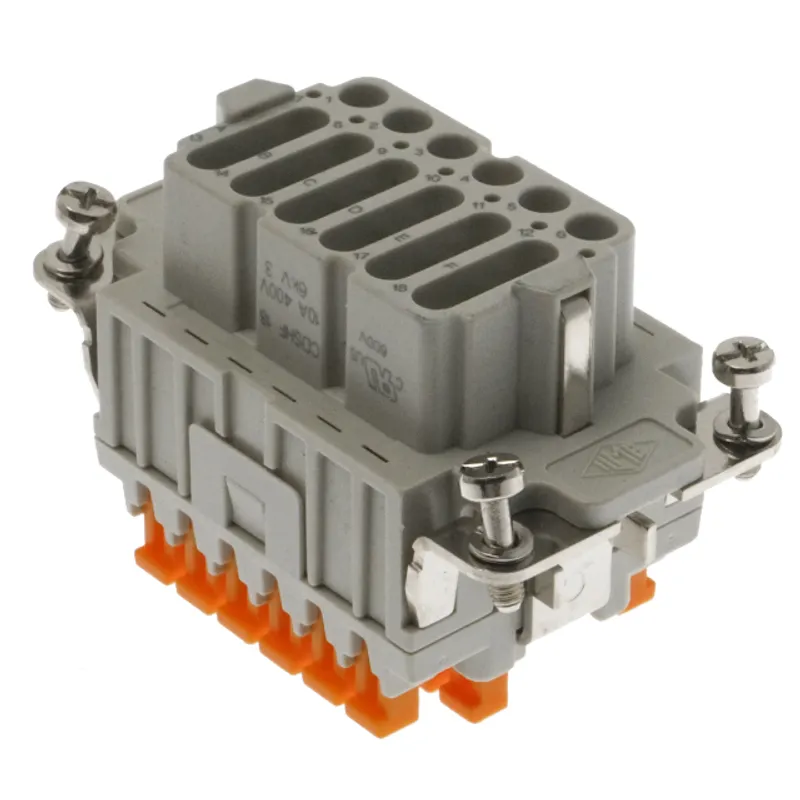

CDSHF-18Request a quoteHi-Density, CDSH series, Female Rectangular Insert, size 57.27, 18 pin, 10 amp, Squich Spring
-

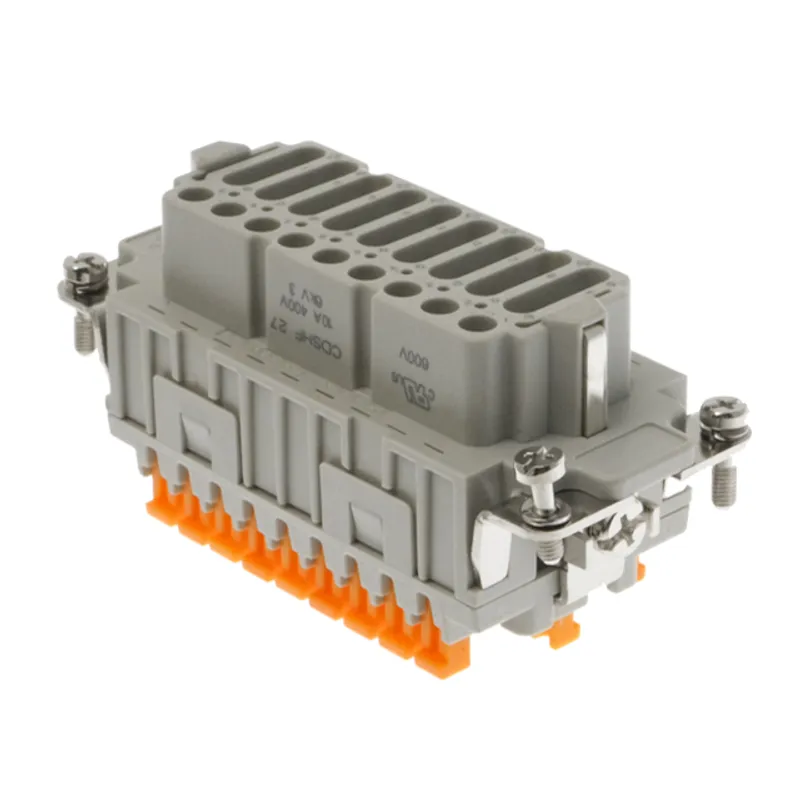

CDSHF-27Request a quoteHi-Density, CDSH series, Female Rectangular Insert, size 77.27, 27 pin, 10 amp, Squich Spring
-
CDSHF-27NRequest a quoteHi-Density, CDSH series, Female Rectangular Insert, size 77.27, 27 pin, 10 amp, Squich Spring (28-54)
View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)
-

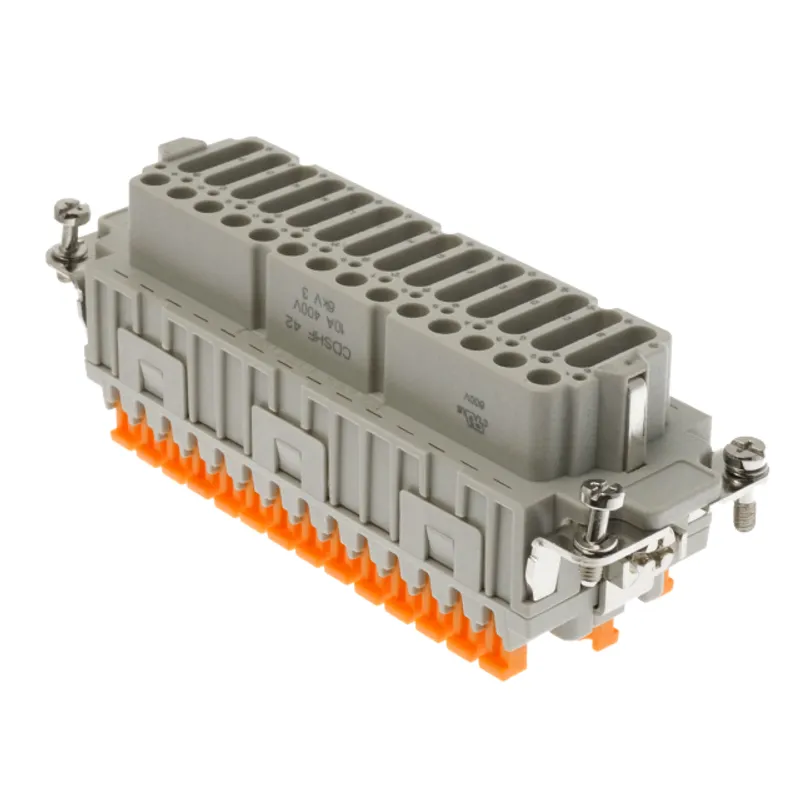

CDSHF-42Request a quoteHi-Density, CDSH series, Female Rectangular Insert, size 104.27, 42 pin, 10 amp, Squich Spring
View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)
-
CDSHF-42NRequest a quoteHi-Density, CDSH series, Female Rectangular Insert, size 104.27, 42 pin, 10 amp, Squich Spring (43-84)
-

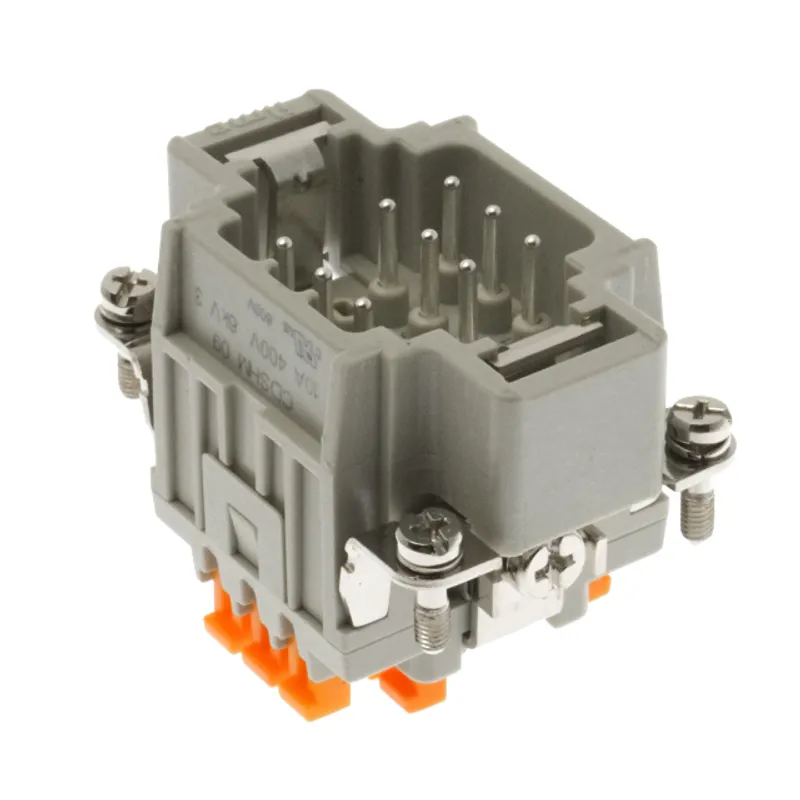

CDSHM-09Request a quoteHi-Density, CDSH series, Male Rectangular Insert, size 44.27, 9 pin, 10 amp, Squich Spring
-

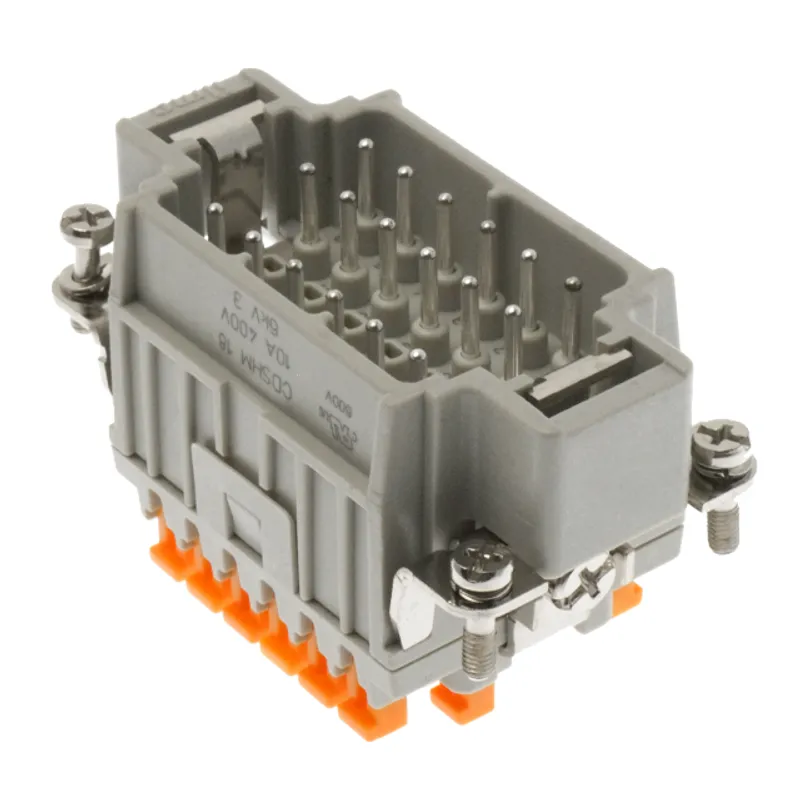

CDSHM-18Request a quoteHi-Density, CDSH series, Male Rectangular Insert, size 57.27, 18 pin, 10 amp, Squich Spring
-

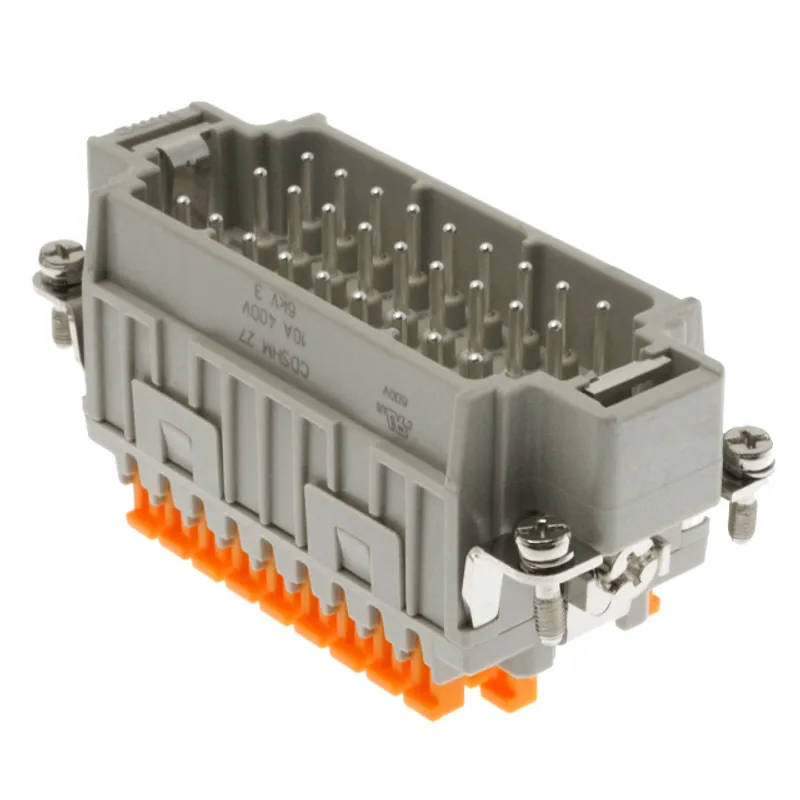

CDSHM-27Request a quoteHi-Density, CDSH series, Male Rectangular Insert, size 77.27, 27 pin, 10 amp, Squich Spring
View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)
-
CDSHM-27NRequest a quoteHi-Density, CDSH series, Male Rectangular Insert, size 77.27, 27 pin, 10 amp, Squich Spring (28-54)
View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)
-

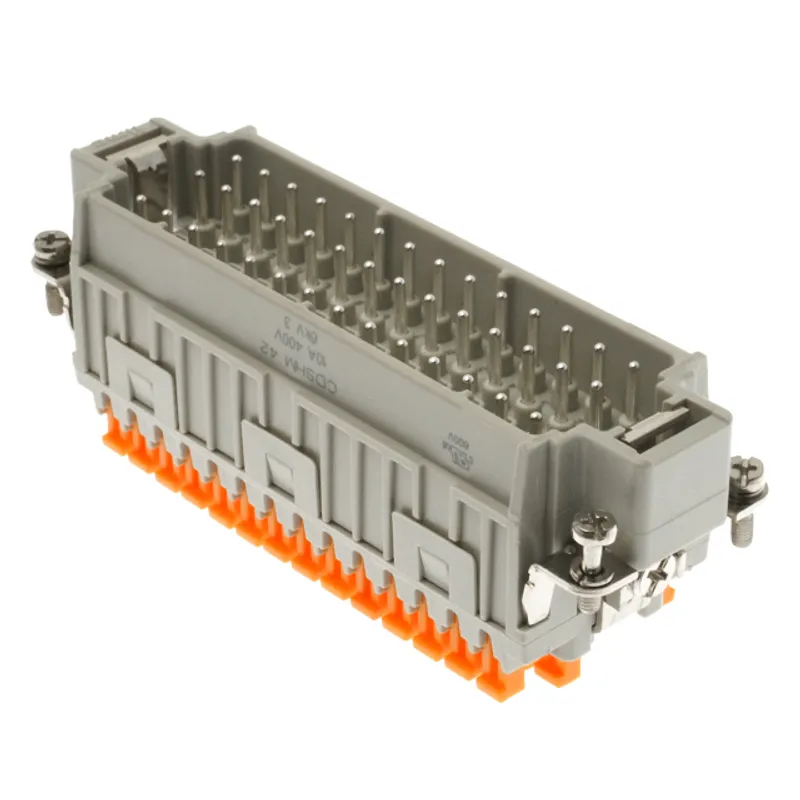

CDSHM-42Request a quoteHi-Density, CDSH series, Male Rectangular Insert, size 104.27, 42 pin, 10 amp, Squich Spring
View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)
-
CDSHM-42NRequest a quoteHi-Density, CDSH series, Male Rectangular Insert, size 104.27, 42 pin, 10 amp, Squich Spring (43-84)
-

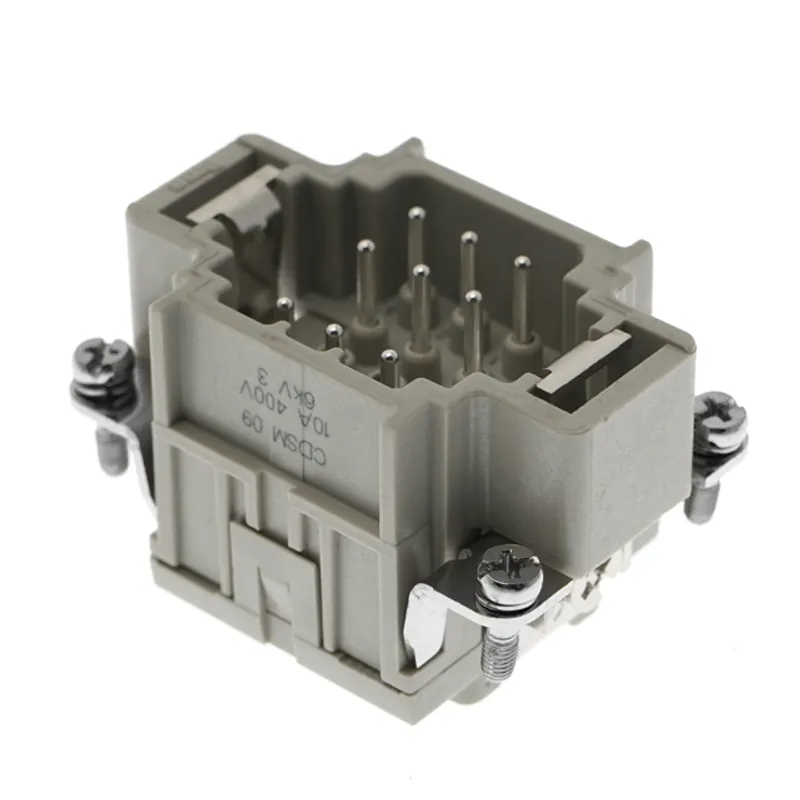

CDSM-09Request a quoteHi-Density, CDS series, Male Rectangular Insert, size 44.27, 9 pin, 10 amp, Standard Spring
-

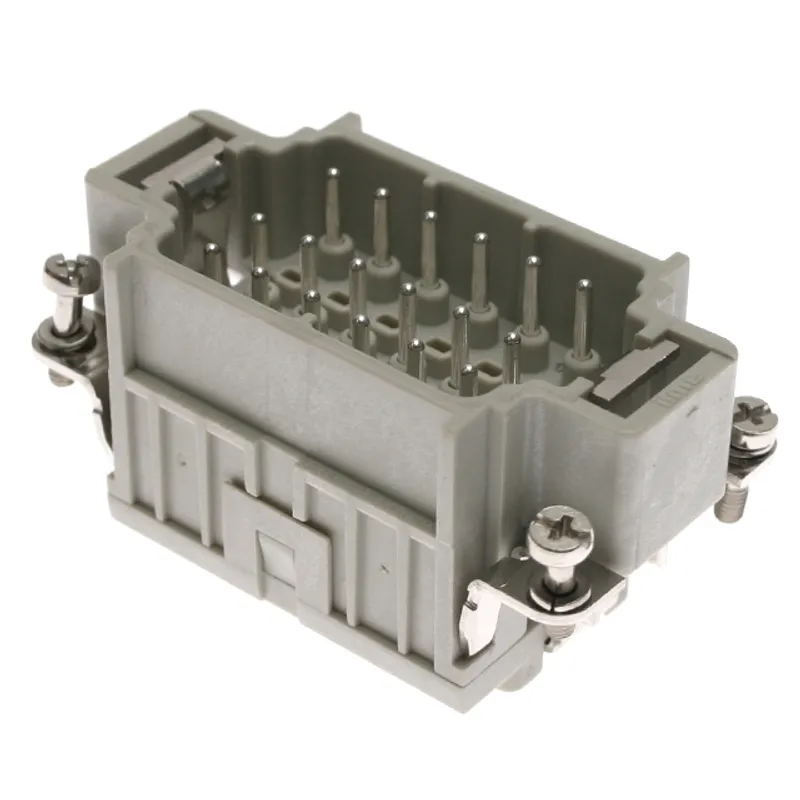

CDSM-18Request a quoteHi-Density, CDS series, Male Rectangular Insert, size 57.27, 18 pin, 10 amp, Standard Spring
-

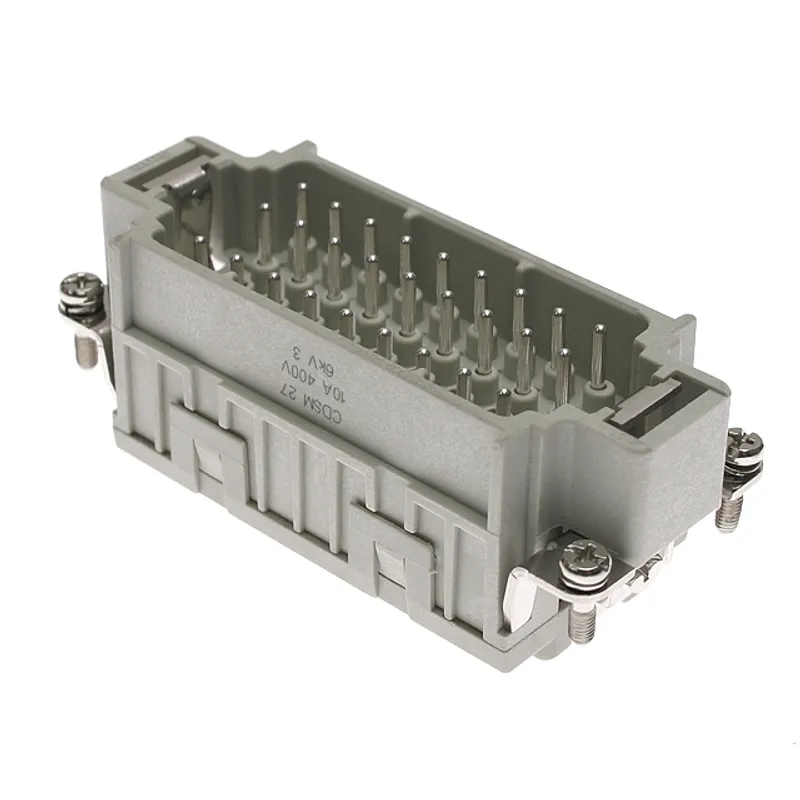

CDSM-27Request a quoteHi-Density, CDS series, Male Rectangular Insert, size 77.27, 27 pin, 10 amp, Standard Spring
-

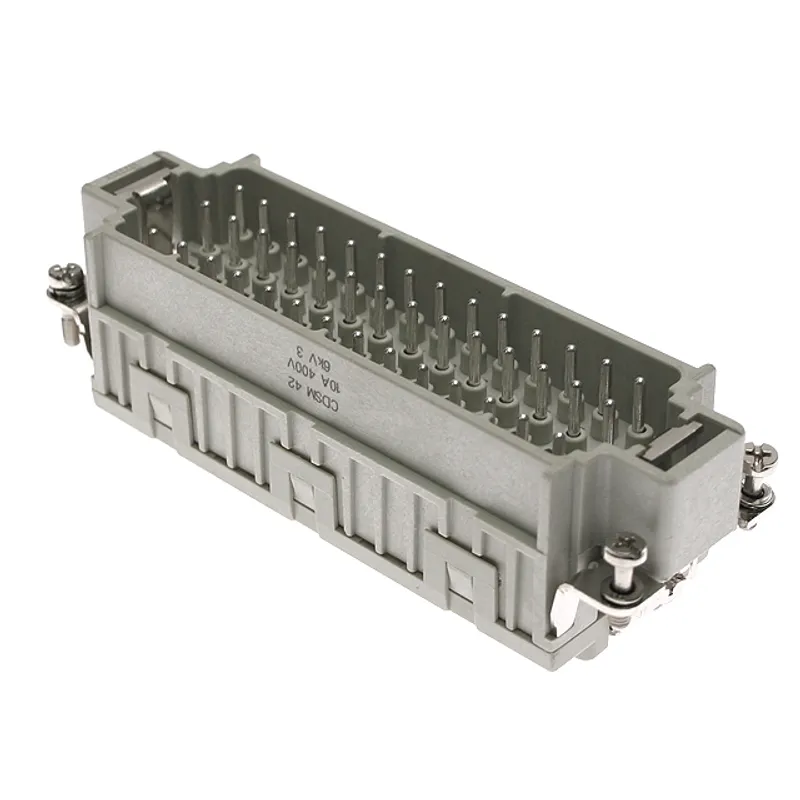

CDSM-42Request a quoteHi-Density, CDS series, Male Rectangular Insert, size 104.27, 42 pin, 10 amp, Standard Spring
-
CDSM-42NRequest a quoteHi-Density, CDS series, Male Rectangular Insert, size 104.27, 42 pin, 10 amp, Standard Spring (43-84)
Part descriptions are Mencom’s own catalog descriptions. Drawings, CAD files and brochures are Mencom documents, hosted by Gross Automation.
