Mencom KADL and KADP cable entry

41 Mencom part numbers. Copy the one you need, open its drawing, or request a quote.

Request a quote

One order, one finished panel: Gross Manufacturing builds custom UL 508A control panels around the parts we sell.

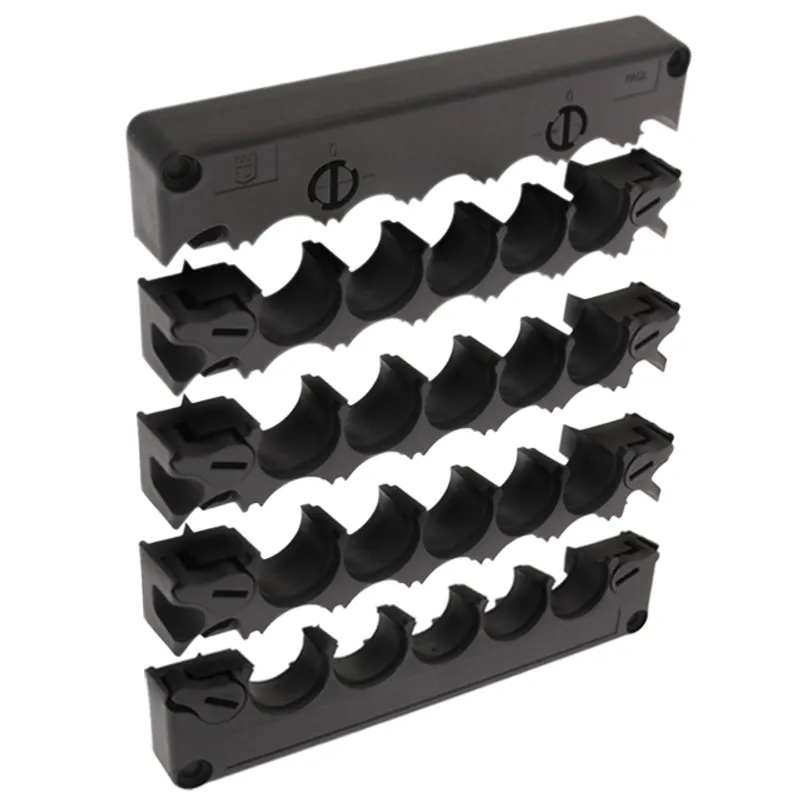

From Mencom: The KADL Cable Entry System provides the tool free entry and connecting solution for machines and equipment. The modular structure allows a step-by-step installation of 5 to 25 cables into a housing wall with thickness between 1.5mm and 2.0mm. If the wall is thicker than 2.0mm, the KADL can be mounted with screws. The KADL cable entry system is IP65 rated. The grommets shall be ordered separately as accessories for Cable Entry System KADL.

From Mencom: The KADL Cable Entry System provides the tool free entry and connecting solution for machines and equipment. The modular structure allows a step-by-step installation of 5 to 25 cables into a housing wall with thickness between 1.5mm and 2.0mm. If the wall is thicker than 2.0mm, the KADL can be mounted with screws. The KADL cable entry system is IP65 rated. The grommets shall be ordered separately as accessories.

KADL-10K Request a quote

KADL Cable Entry System Frame, 10 Entries, The grommets (3-16.5mm) ordered separately

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

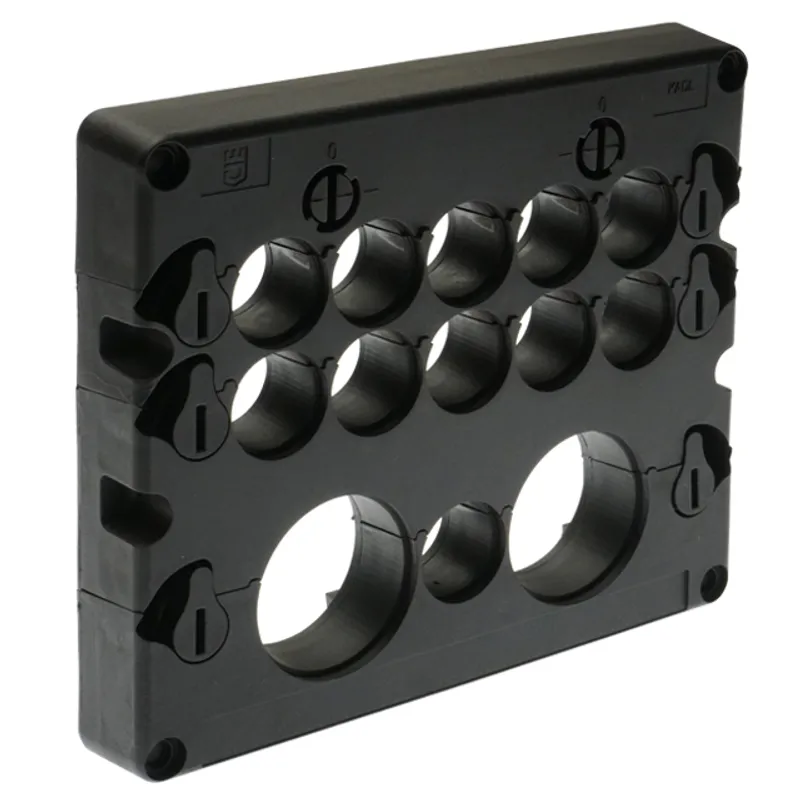

KADL-11K-2G Request a quote

KADL Cable Entry System Frame, 13 Entries, 11 x small grommet (3-16.5mm) and 2 x large grommets (15-32.5mm) ordered separately

View on GrossAutomation.com Brochure (PDF)
KADL-15K Request a quote

KADL Cable Entry System Frame, 15 Entries, The grommets (3-16.5mm) ordered separately

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

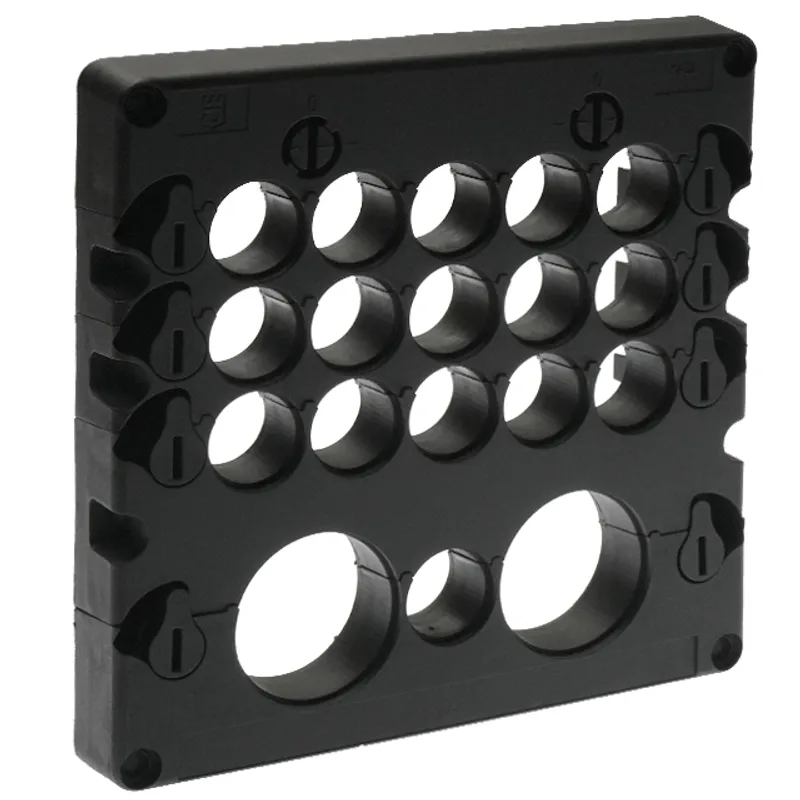

KADL-16K-2G Request a quote

KADL Cable Entry System Frame, 18 Entries, 16 x small grommet (3-16.5mm) and 2 x large grommets (15-32.5mm) ordered separately

View on GrossAutomation.com Brochure (PDF)

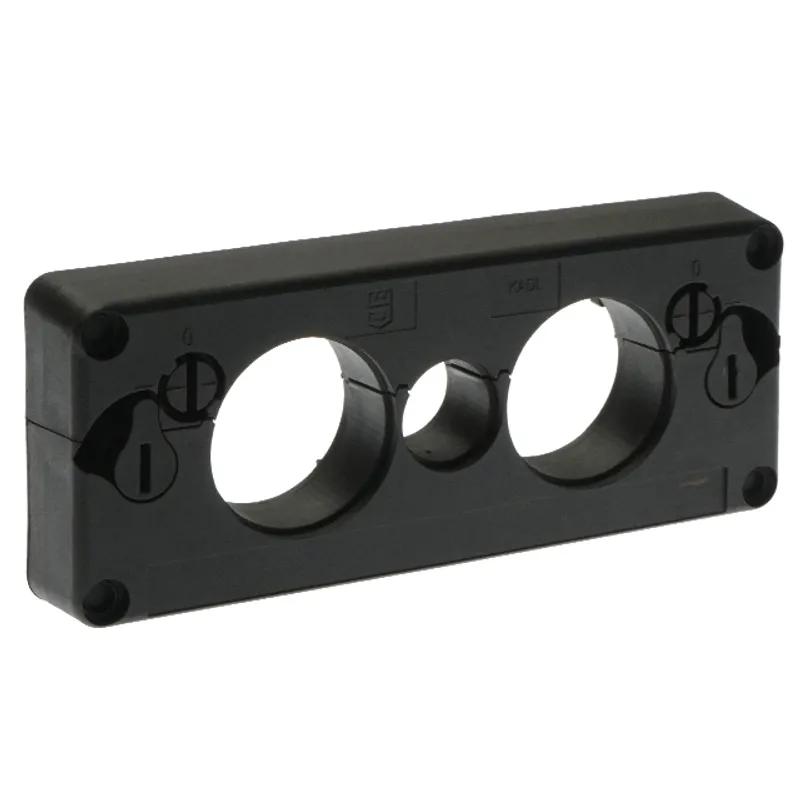

KADL-1K-2G Request a quote

KADL Cable Entry System Frame, 3 Entries, 1 x small grommet (3-16.5mm) and 2 x large grommets (15-32.5mm) ordered separately

View on GrossAutomation.com Brochure (PDF)
KADL-20K Request a quote

KADL Cable Entry System Frame, 20 Entries, The grommets (3-16.5mm) ordered separately

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

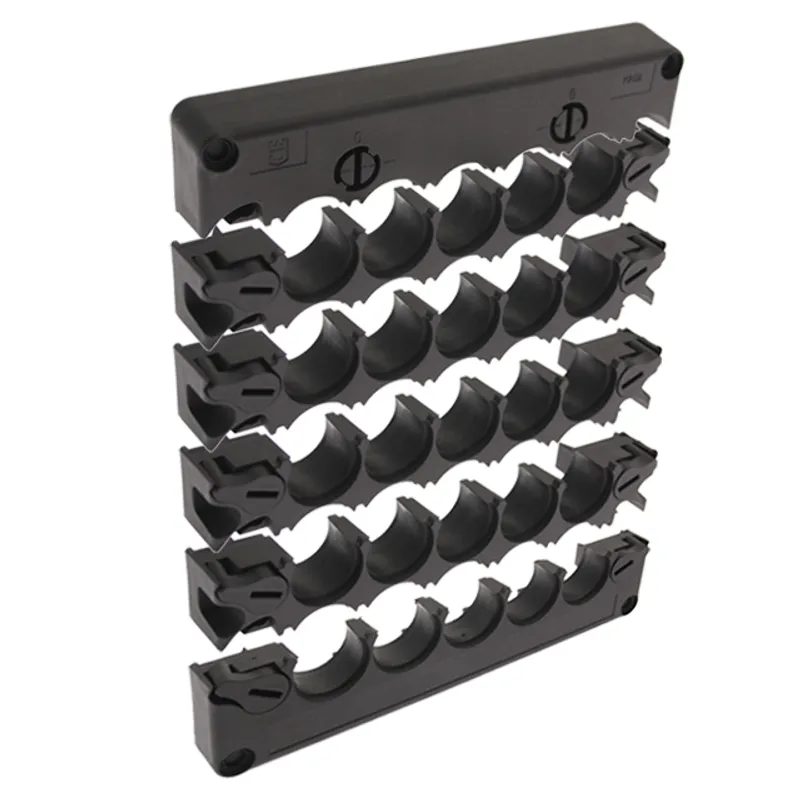

KADL-25K Request a quote

KADL Cable Entry System Frame, 25 Entries, The grommets (3-16.5mm) ordered separately

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

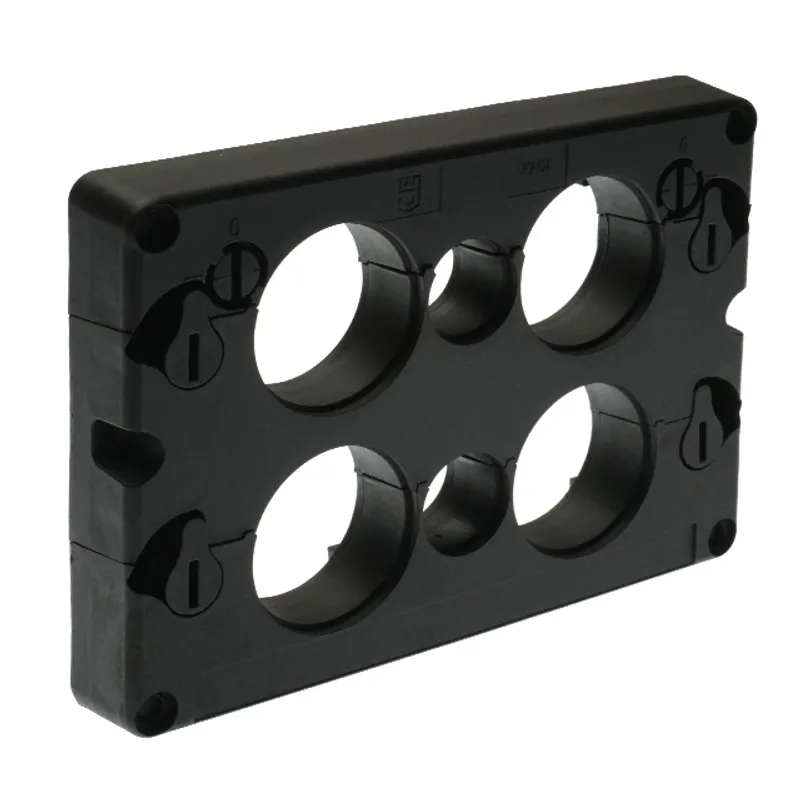

KADL-2K-4G Request a quote

KADL Cable Entry System Frame, 6 Entries, 2 x small grommet (3-16.5mm) and 4 x large grommets (15-32.5mm) ordered separately

View on GrossAutomation.com Brochure (PDF)

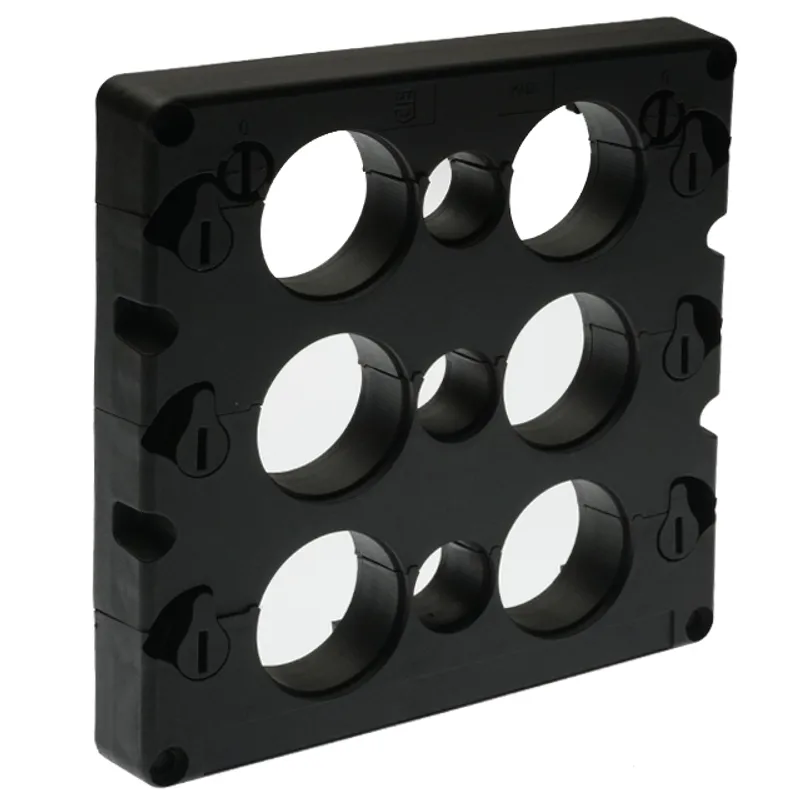

KADL-3K-6G Request a quote

KADL Cable Entry System Frame, 9 Entries, 3 x small grommet (3-16.5mm) and 6 x large grommets (15-32.5mm) ordered separately

View on GrossAutomation.com Brochure (PDF)

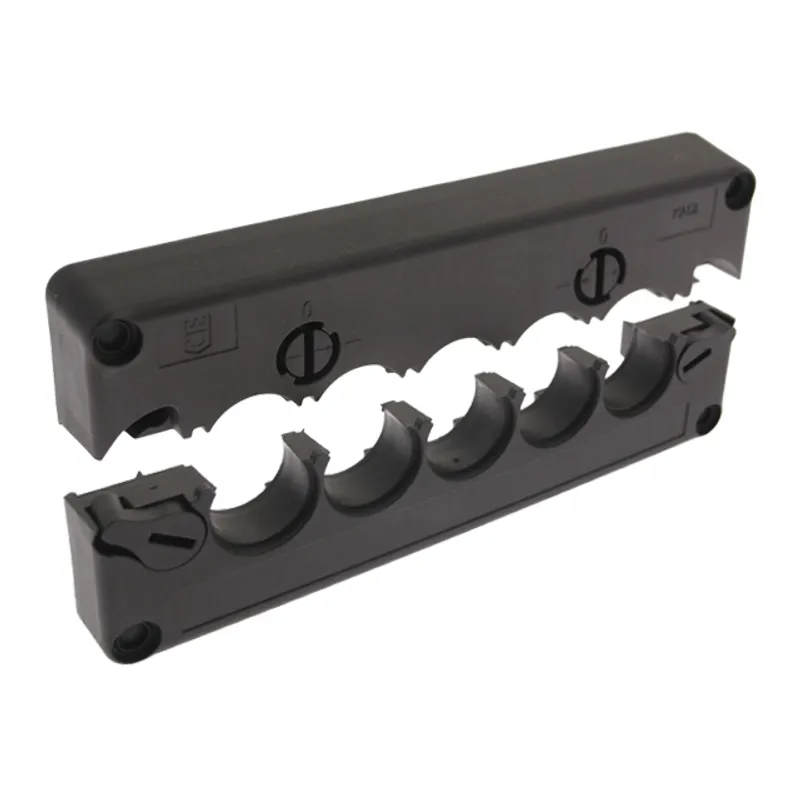

KADL-5K Request a quote

KADL Cable Entry System Frame, 5 Entries, The grommets (3-16.5mm) ordered separately

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)
KADL-6K-2G Request a quote

KADL Cable Entry System Frame, 8 Entries, 6 x small grommet (3-16.5mm) and 2 x large grommets (15-32.5mm) ordered separately

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

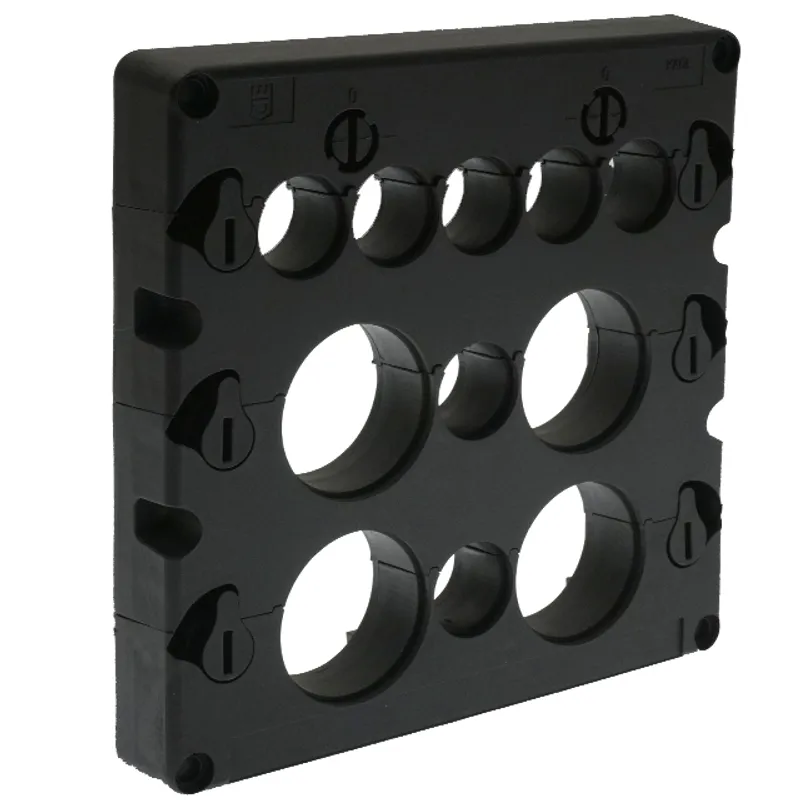

KADL-7K-4G Request a quote

KADL Cable Entry System Frame, 11 Entries, 7 x small grommet (3-16.5mm) and 4 x large grommets (15-32.5mm) ordered separately

View on GrossAutomation.com Brochure (PDF)

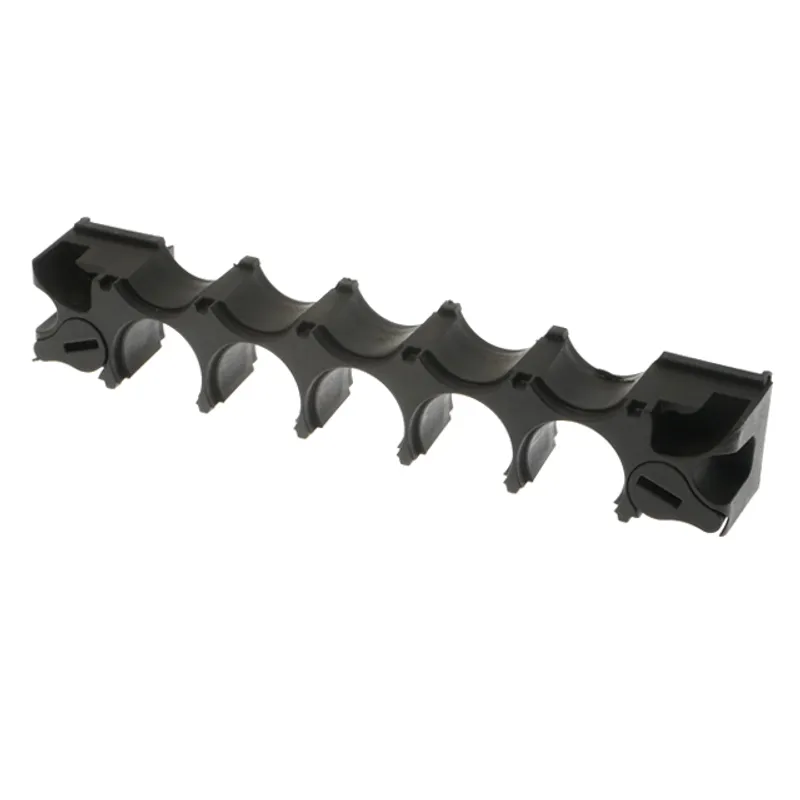

KADL-EXP Request a quote

KADL Cable Entry System Frame, Expansion insert, The grommets (3-16.5mm) ordered separately

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

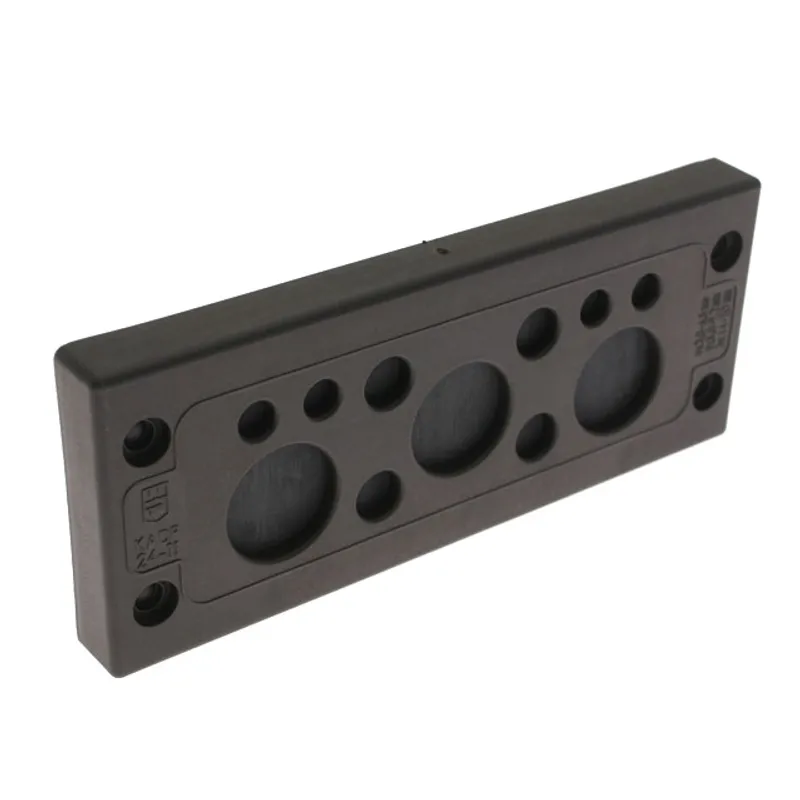

KADP-24-11 Request a quote

KADP Cable Entry Plate, 11 Entries, 4 x 3.0-6.5mm, 4 x 5.0-9.2mm, and 3 x 14.0-20.0mm

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

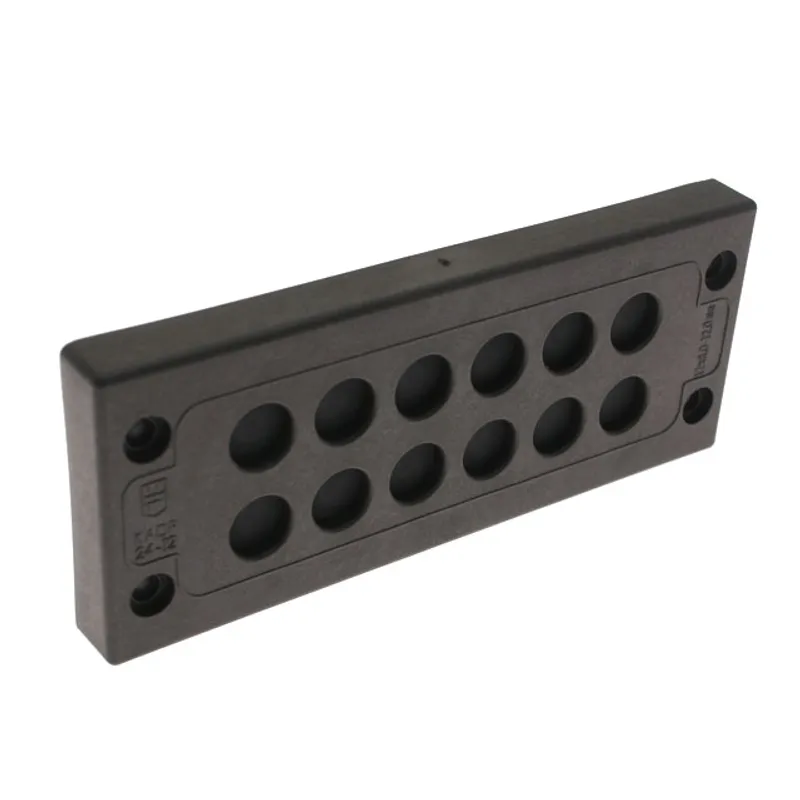

KADP-24-12 Request a quote

KADP Cable Entry Plate, 12 Entries, 12 x 8.0-12.0mm

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

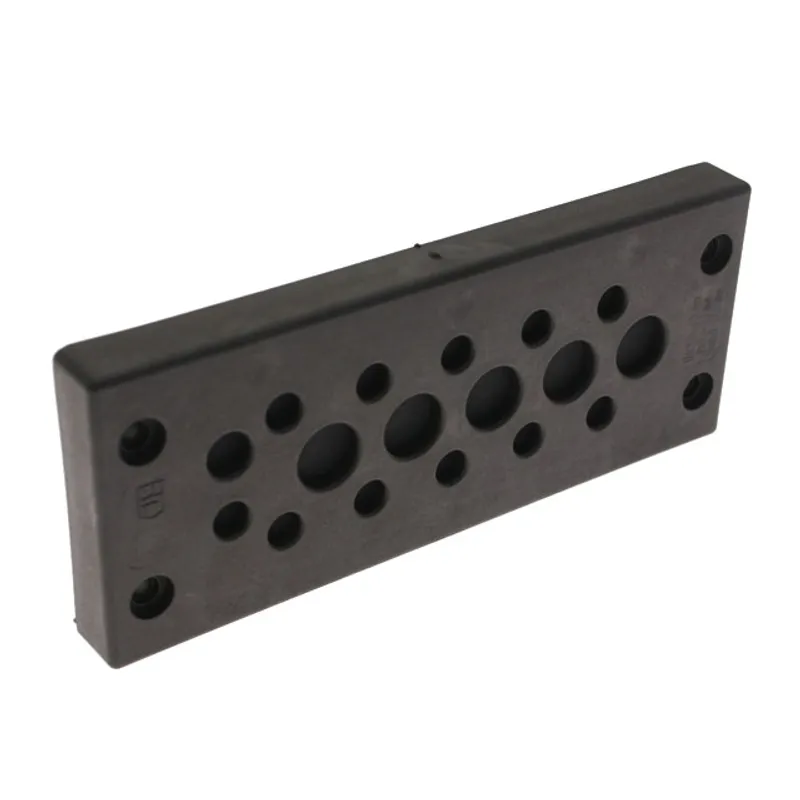

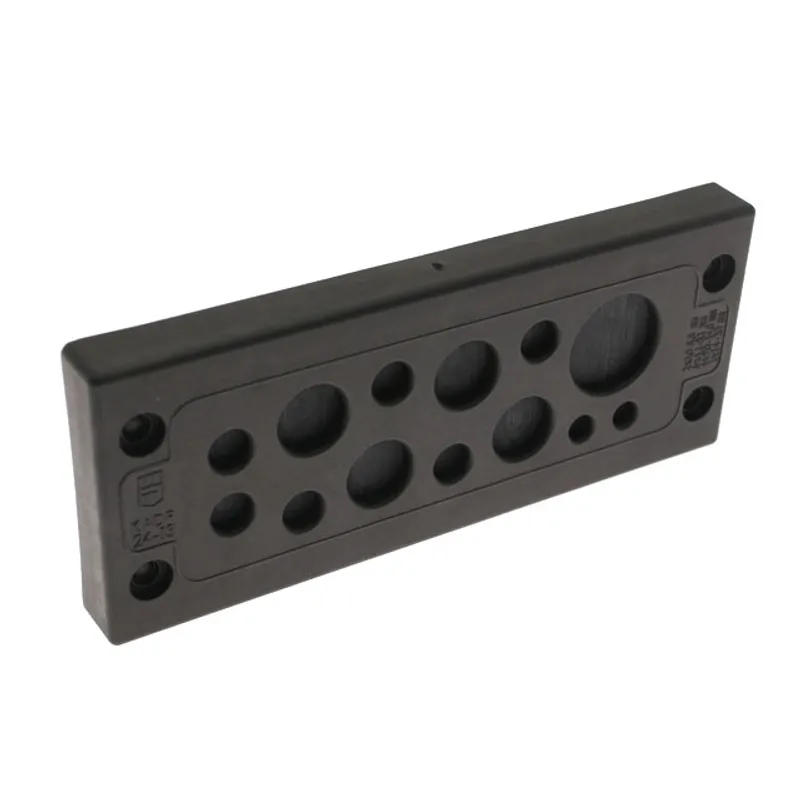

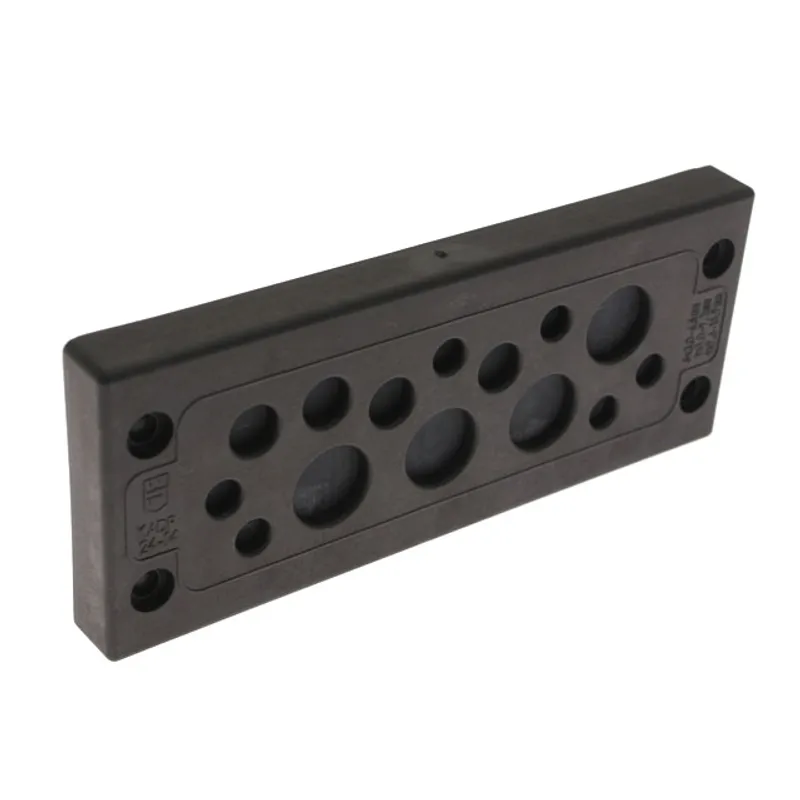

KADP-24-13 Request a quote

KADP Cable Entry Plate, 13 Entries, 2 x 3.0-5.5mm, 6 x 4.1-8.1mm, 4 x 9.0-14.0mm, and 1 x 14.0-20.0mm

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)
KADP-24-14 Request a quote

KADP Cable Entry Plate, 14 Entries, 6 x 3.0-6.5mm, 4 x 5.0-9.2mm, 4 x 9.6-15.9mm

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

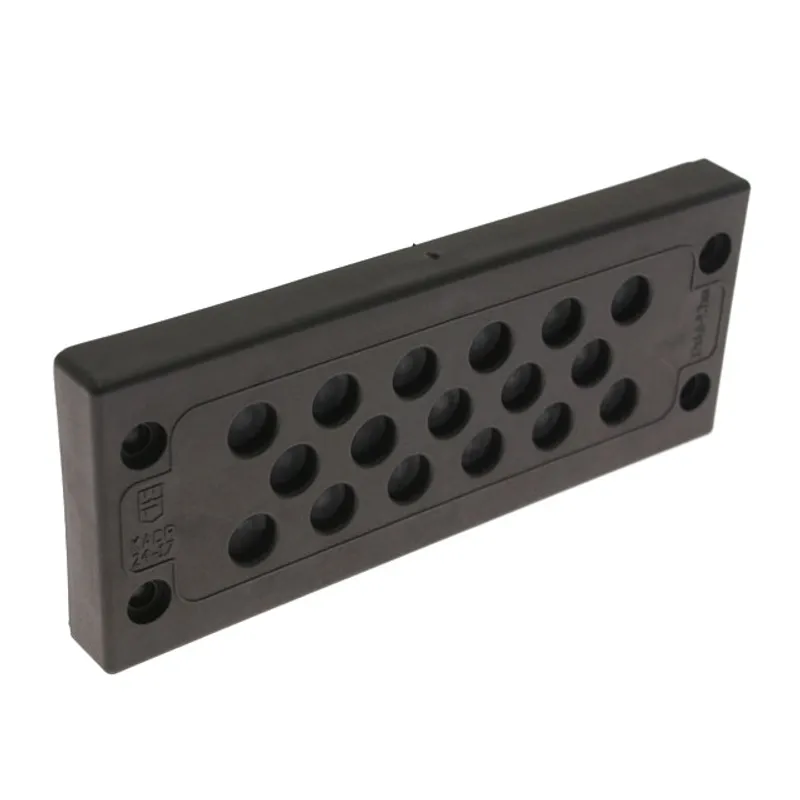

KADP-24-17 Request a quote

KADP Cable Entry Plate, 17 Entries, 17 x 5.0-9.2mm

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)
KADP-24-17-1 Request a quote

KADP Cable Entry Plate, 17 Entries, 11 x 3.0-6.5mm, 1 x 4.1-8.1mm, 5 x 8.0-12.5mm

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)
KADP-24-22 Request a quote

KADP Cable Entry Plate, 22 Entries, 16 x 3.0-6.5mm, 4 x 5.0-9.2mm, 2 x 8.0-12.5mm

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

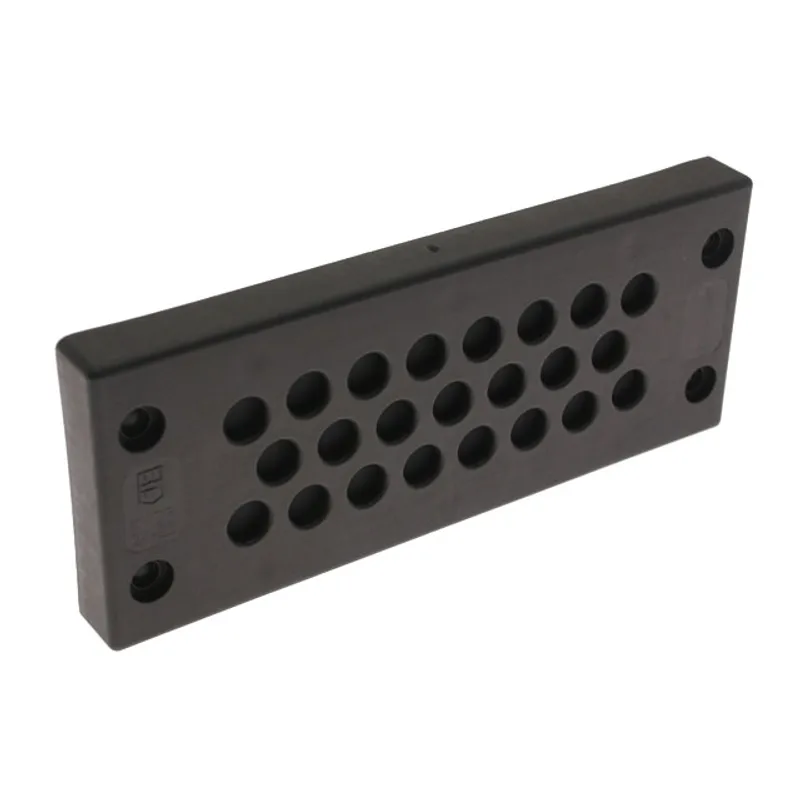

KADP-24-23 Request a quote

KADP Cable Entry Plate, 23 Entries, 23 x 4.1-8.1mm

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

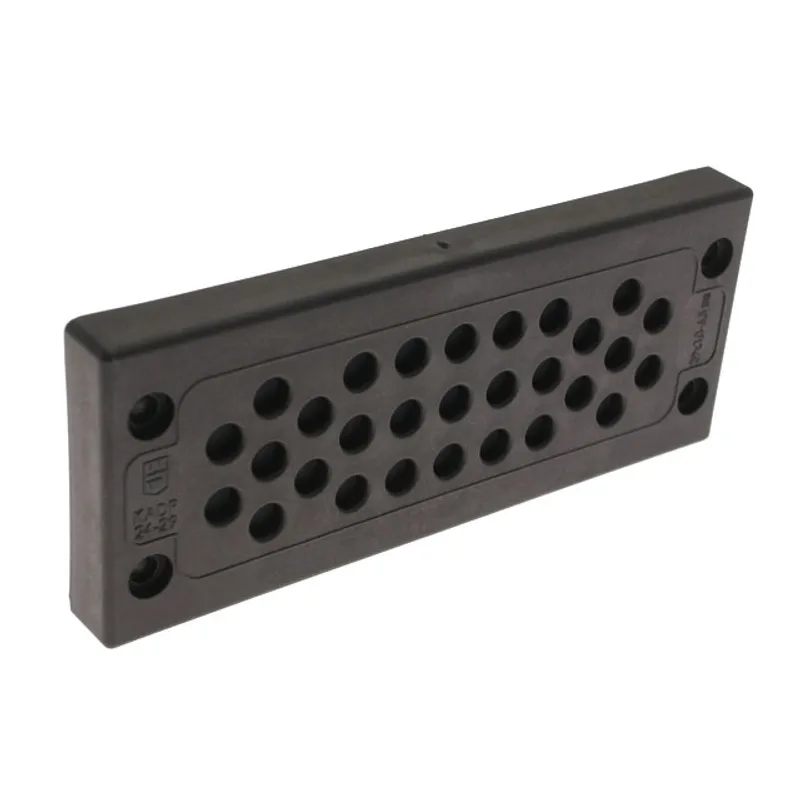

KADP-24-29 Request a quote

KADP Cable Entry Plate, 29 Entries, 29 x 3.0-6.5mm

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)
KADP-24-BLI Request a quote

KADP Cable Entry Plate, No Entries

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

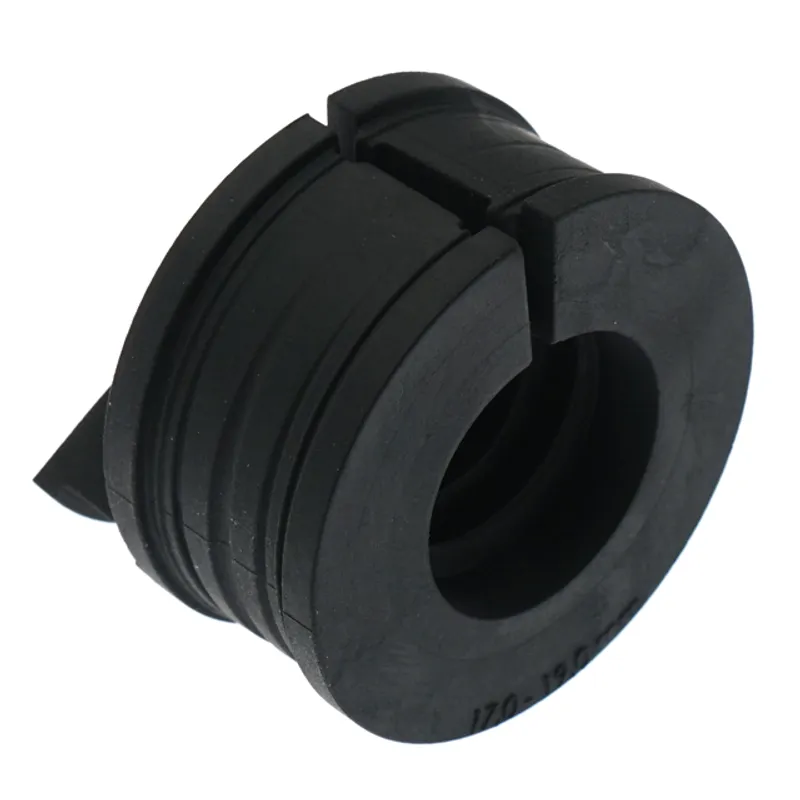

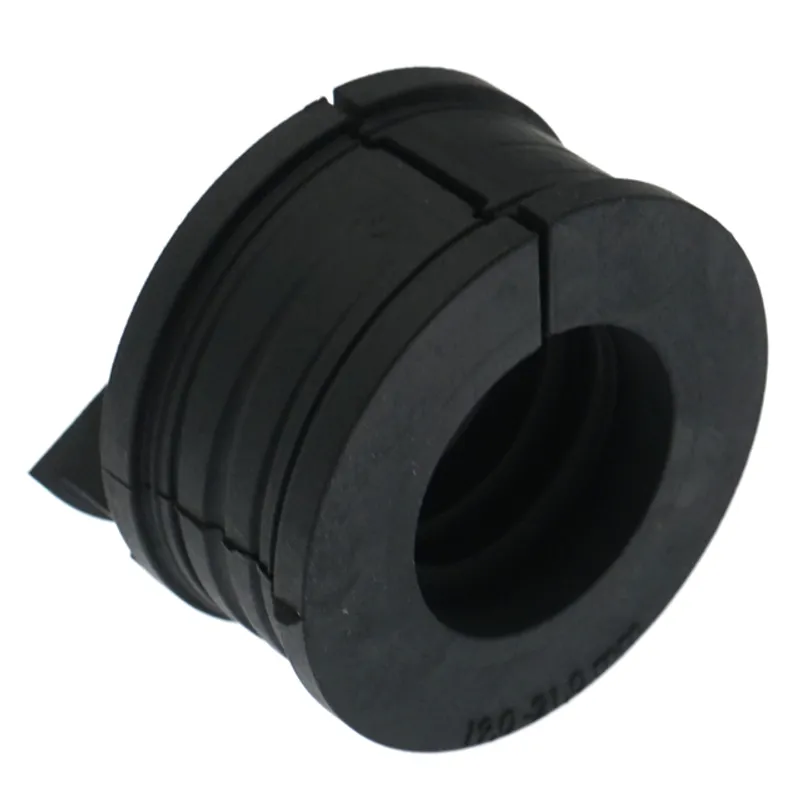

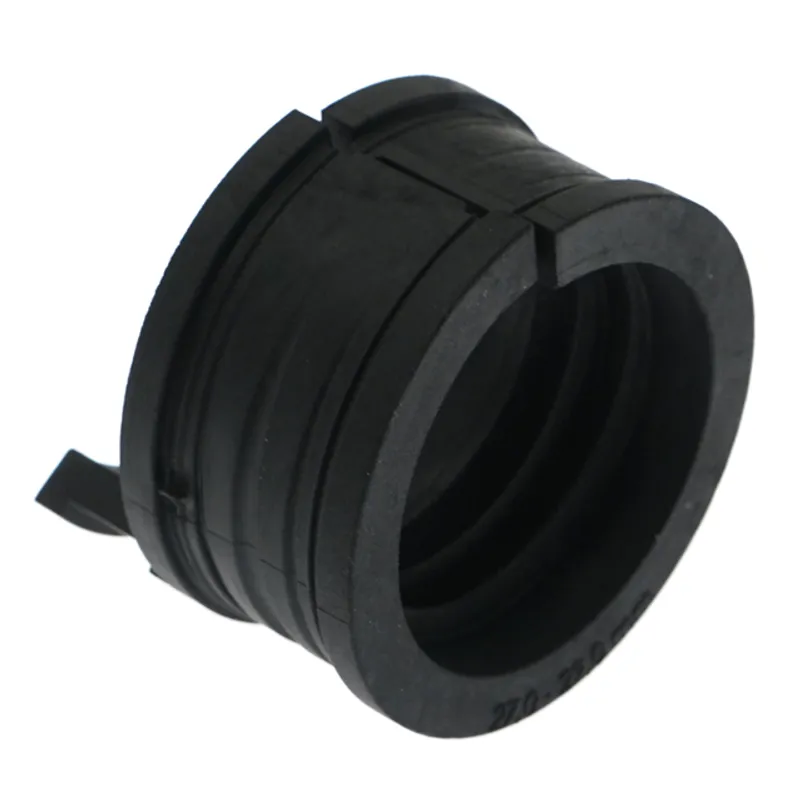

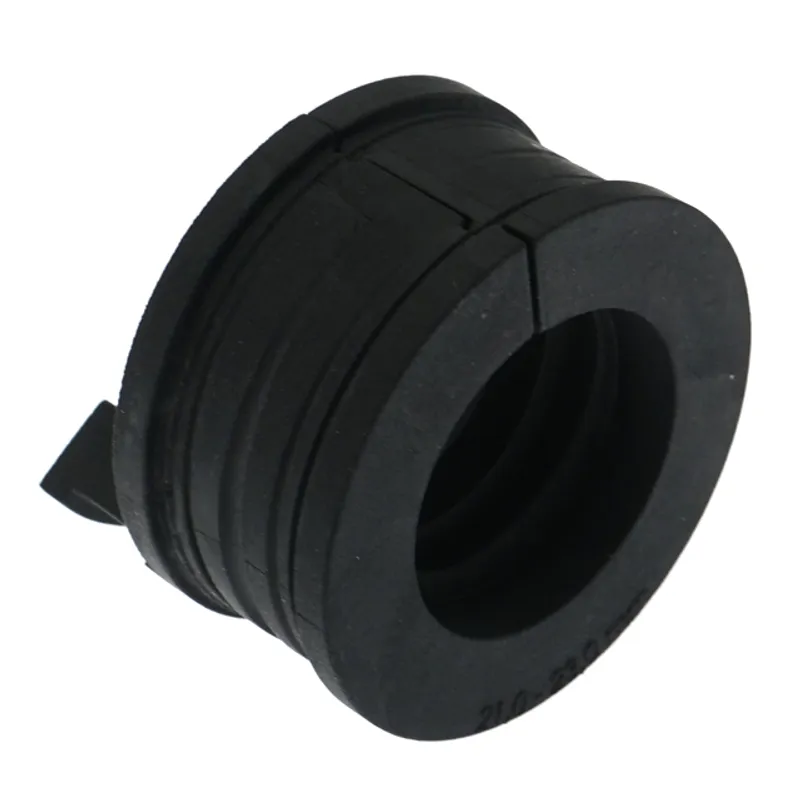

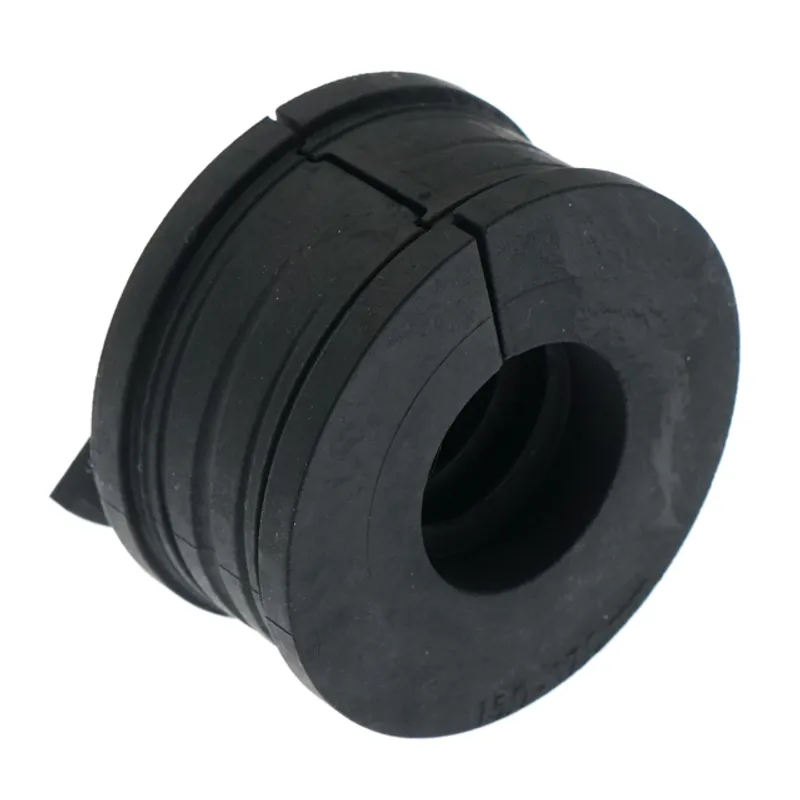

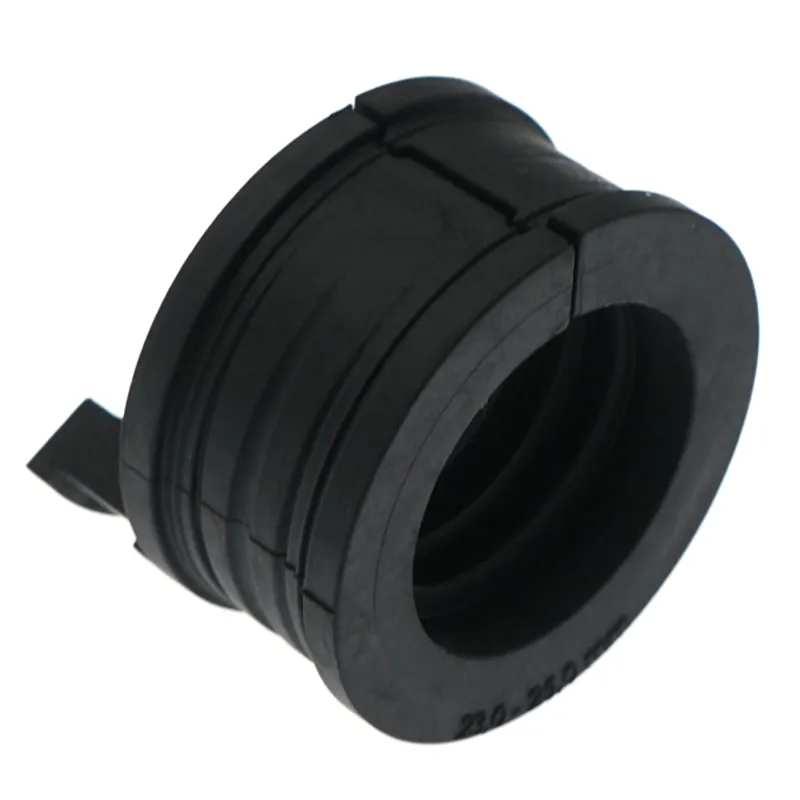

TG-15-17 Request a quote

KADL Large Grommet, 15-17mm (0.59-0.669"), TPE

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)
TG-17-19 Request a quote

KADL Large Grommet, 17-19mm (0.669-0.748"), TPE

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)
TG-19-21 Request a quote

KADL Large Grommet, 19-21mm (0.748-0.827"), TPE

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)
TG-21-23 Request a quote

KADL Large Grommet, 21-23mm (0.827-0.906"), TPE

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

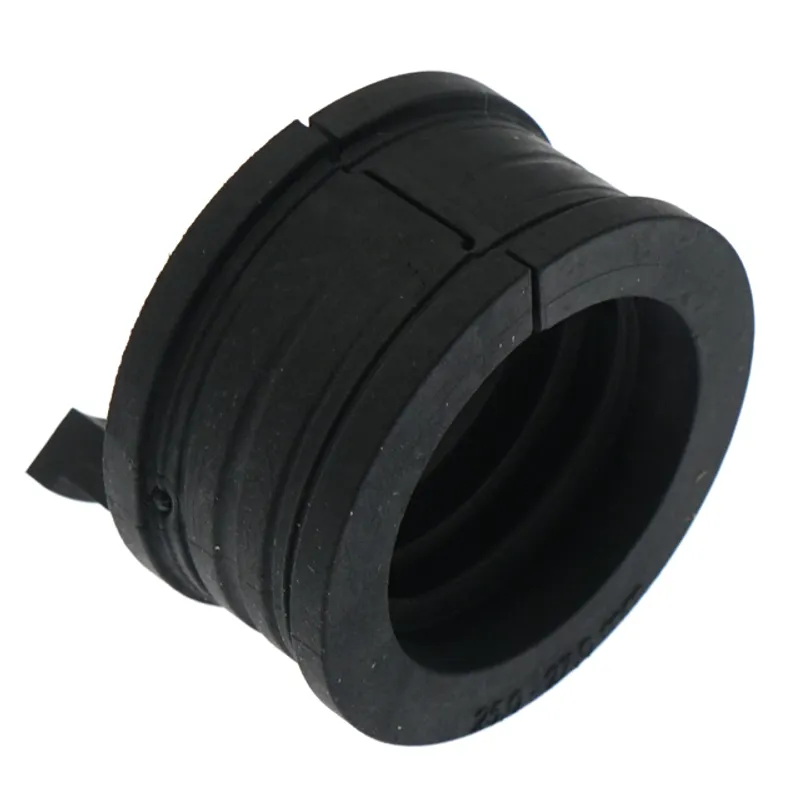

TG-23-25 Request a quote

KADL Large Grommet, 23-25mm (0.906-0.984"), TPE

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)
TG-25-27 Request a quote

KADL Large Grommet, 25-27mm (0.984-1.063"), TPE

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

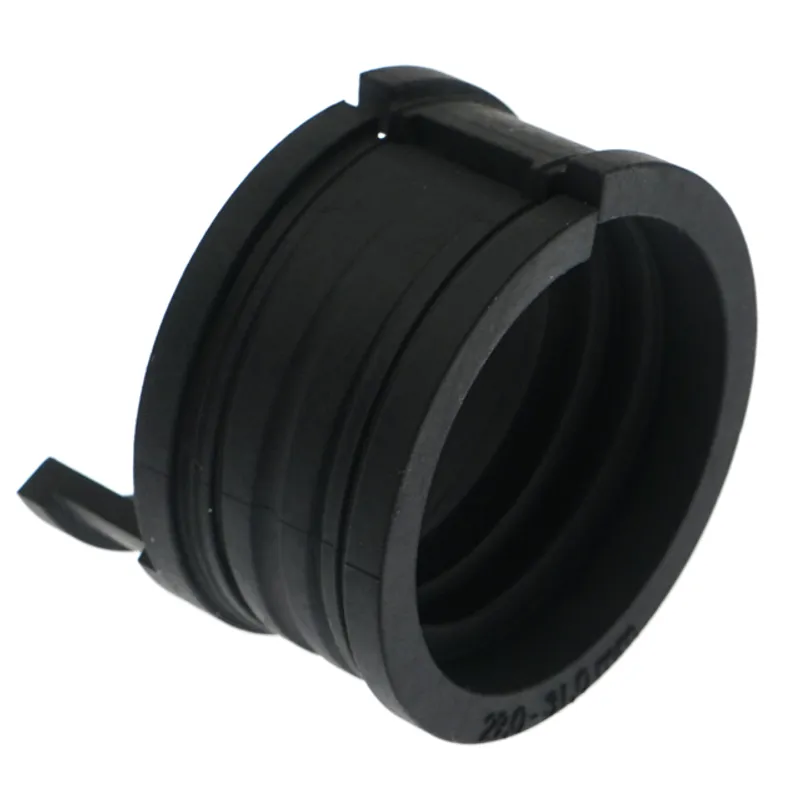

TG-27-29 Request a quote

KADL Large Grommet, 27-29mm (1.063-1.142"), TPE

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)
TG-29-31 Request a quote

KADL Large Grommet, 29-31mm (1.142-1.22"), TPE

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

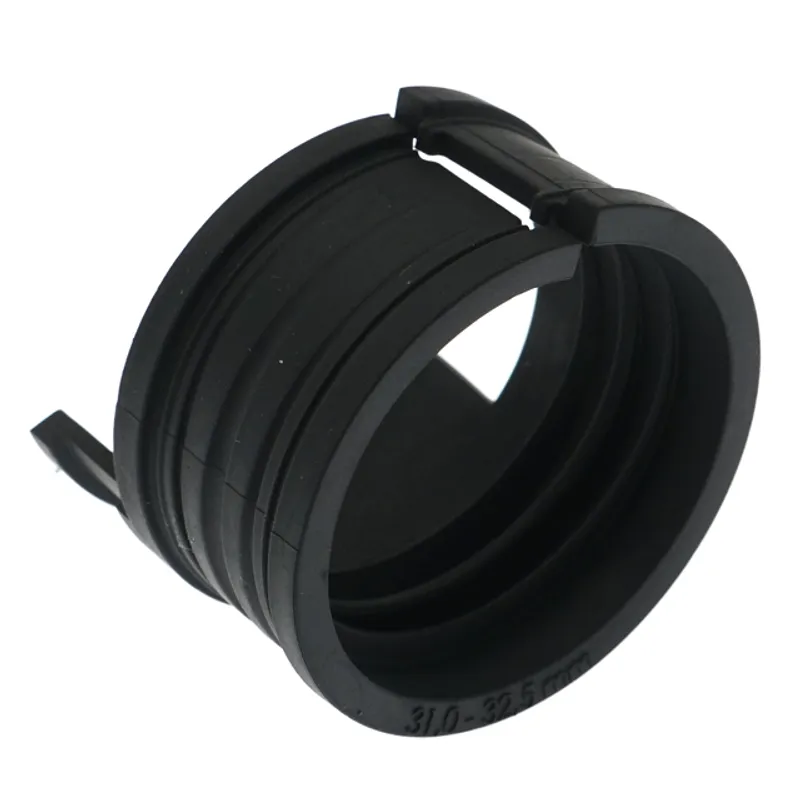

TG-31-32.5 Request a quote

KADL Large Grommet, 31-32.5mm (1.22-1.279"), TPE

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

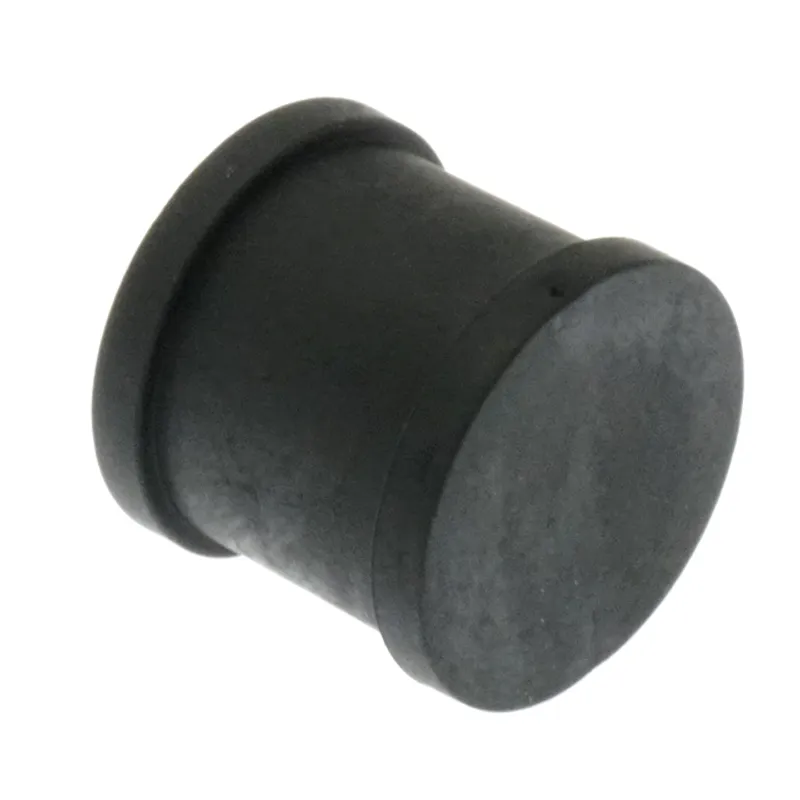

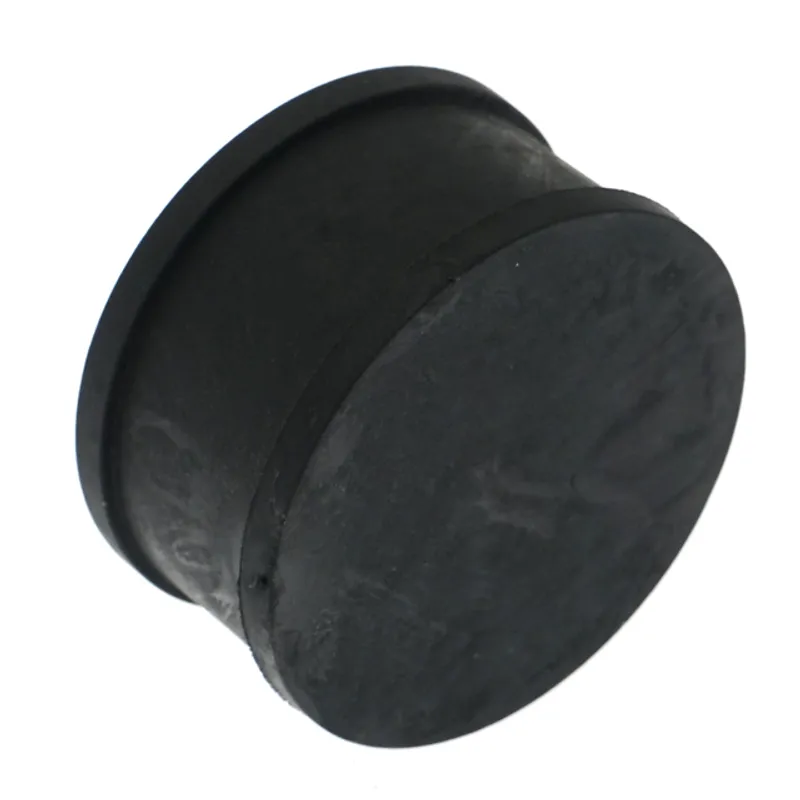

TG-G Request a quote

KADL Large Blank Grommet, TPE

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

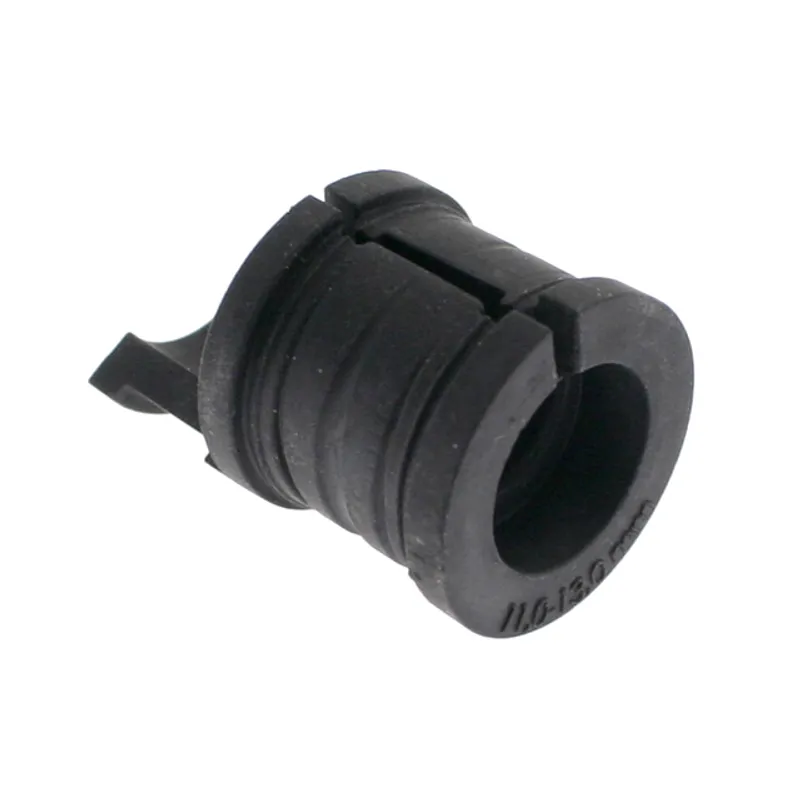

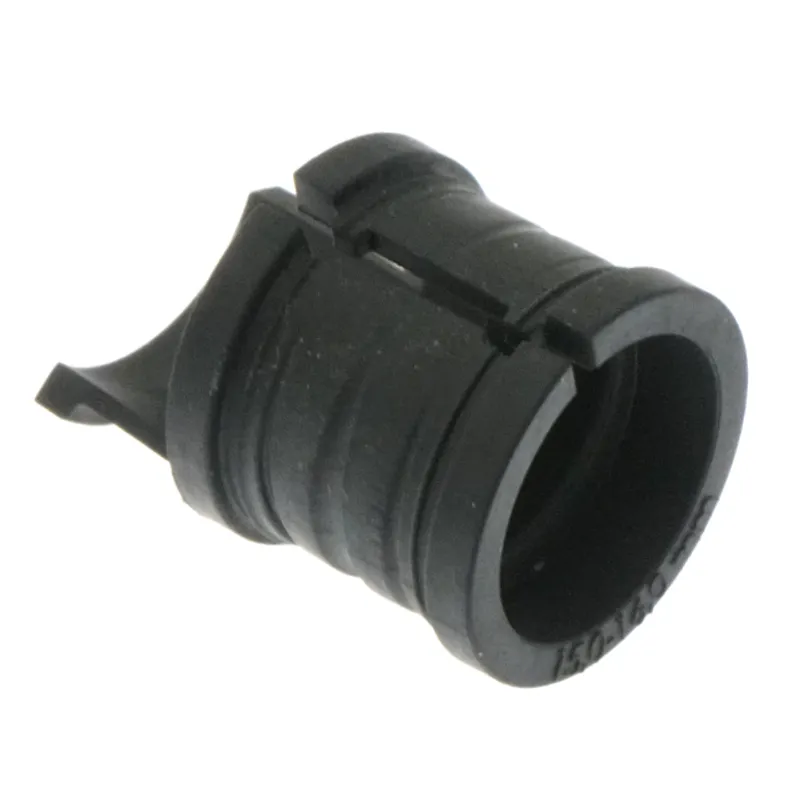

TK-11-13 Request a quote

KADL Grommet, 11-13mm (0.433-0.512"), TPE

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

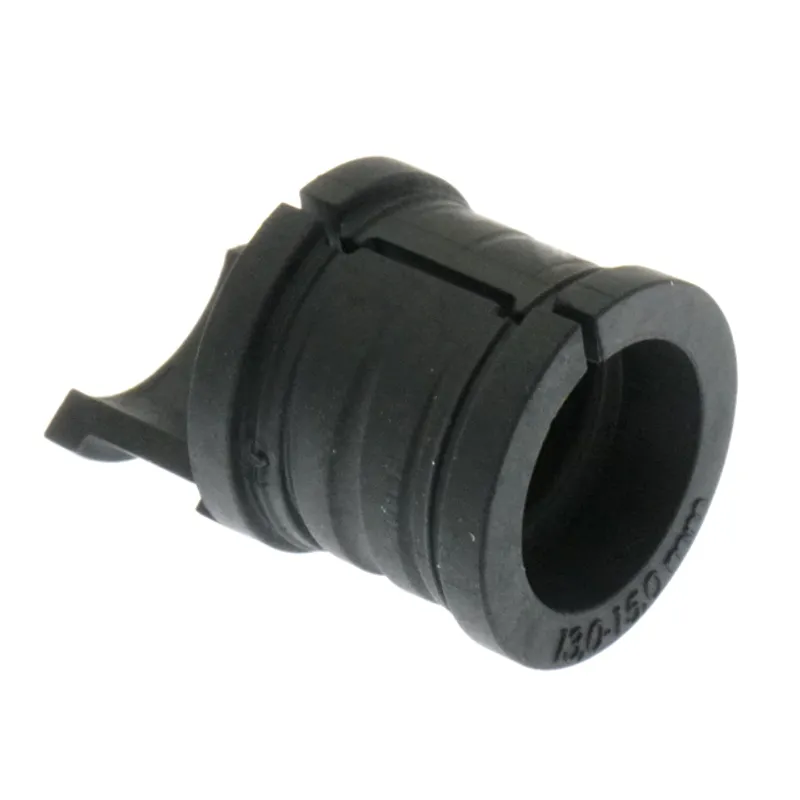

TK-13-15 Request a quote

KADL Grommet, 13-15mm (0.512-0.591"), TPE

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)
TK-15-16 Request a quote

KADL Grommet, 15-16.5mm (0.591-0.65"), TPE

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

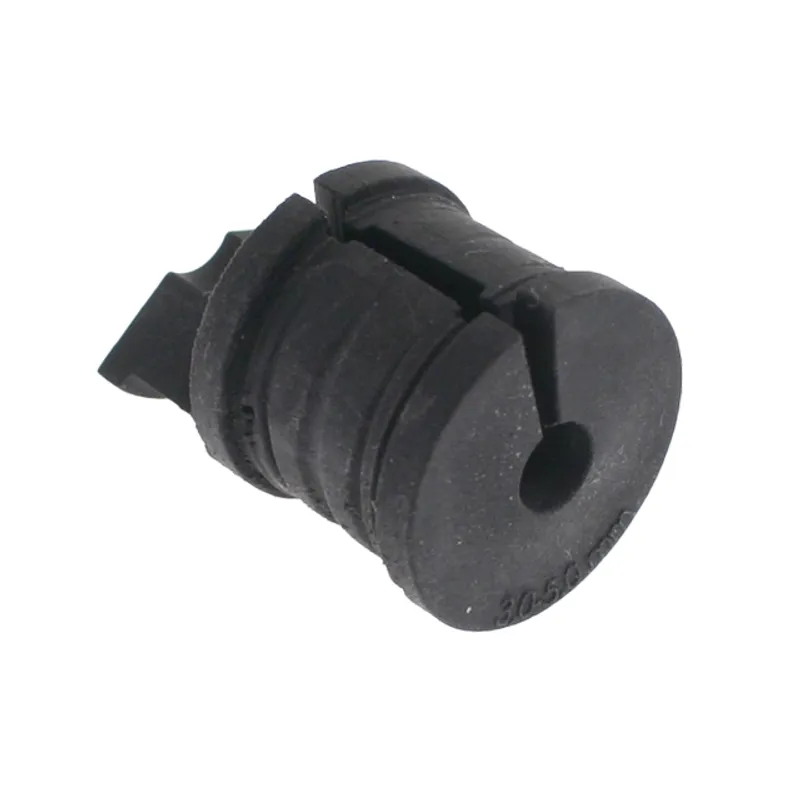

TK-3-5 Request a quote

KADL Grommet, 3-5mm (0.118-0.197"), TPE

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

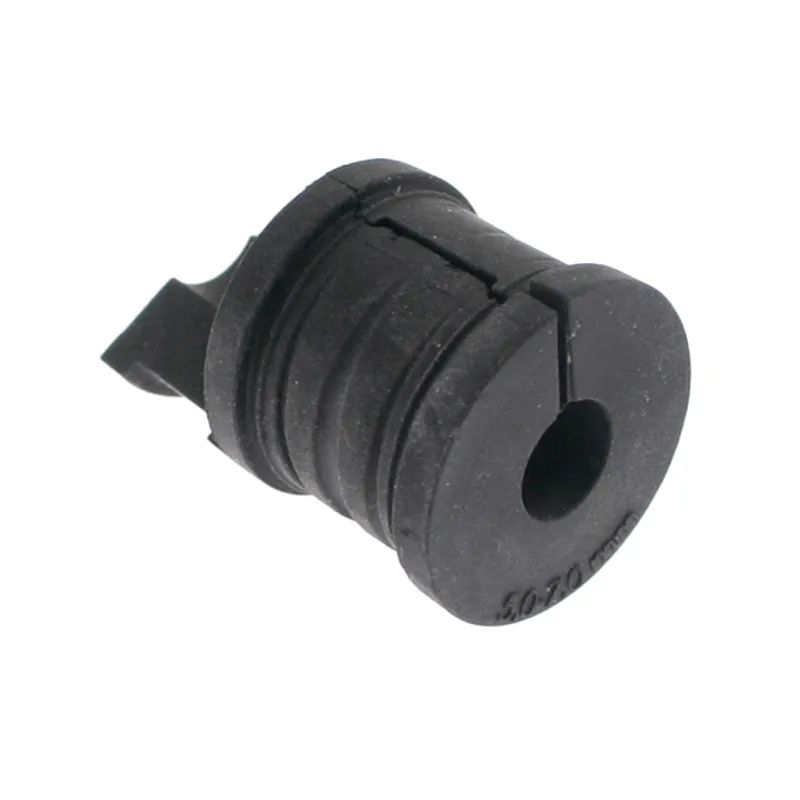

TK-5-7 Request a quote

KADL Grommet, 5-7mm (0.197-0.276"), TPE

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

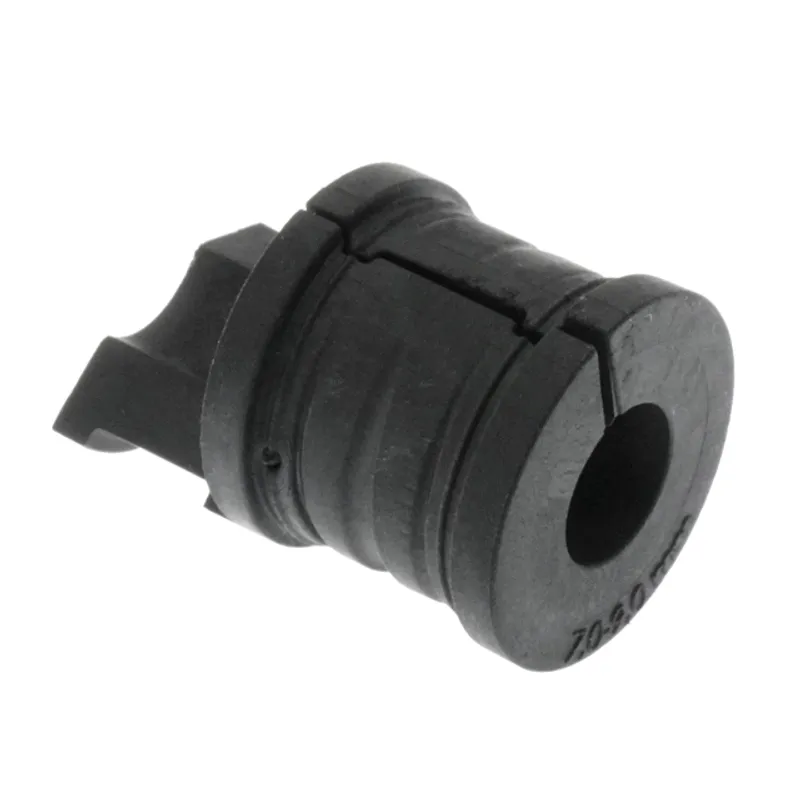

TK-7-9 Request a quote

KADL Grommet, 7-9mm (0.276-0.354"), TPE

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

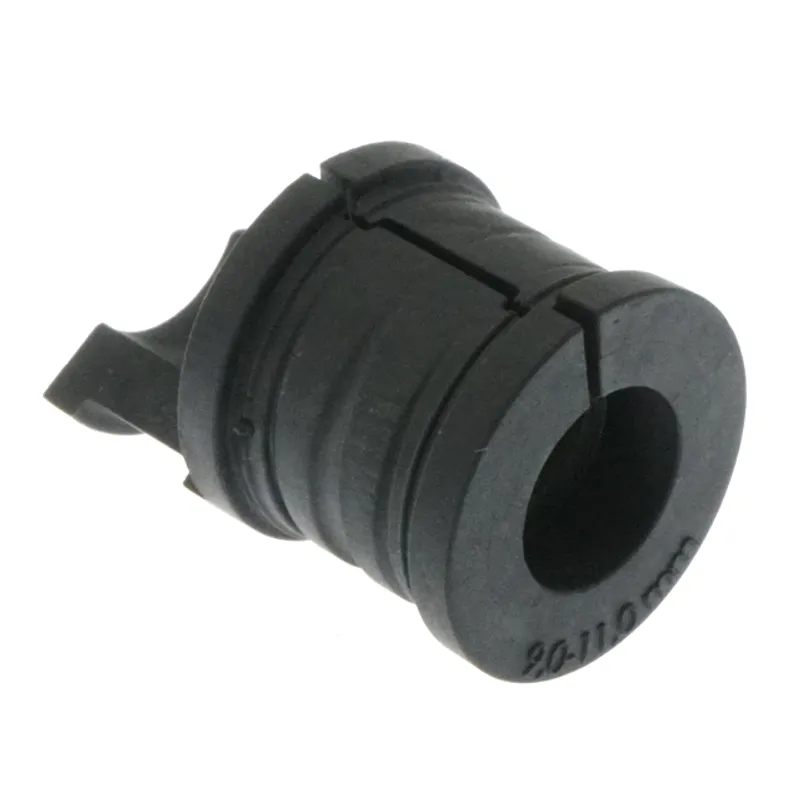

TK-9-11 Request a quote

KADL Grommet, 9-11mm (0.354-0.433"), TPE

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)
TK-G Request a quote

KADL Blank Grommet, TPE

View on GrossAutomation.com Drawing (PDF) CAD (DWG) Brochure (PDF)

Part descriptions are Mencom’s own catalog descriptions. Drawings, CAD files and brochures are Mencom documents, hosted by Gross Automation.
